East Hills Instruments M-10 Magnum Pro Hydraulic Calibration Pump 10,000 PSIG
|
Item Number: M-10
Manufacturer: East Hills Instruments
Manufacturer Part No: M-10
Product Options
* denotes required field
M-10 Magnum Pro Kit Options*
* Whole number only
|
|

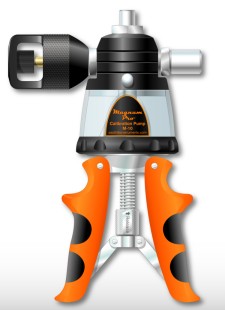

M-10 Magnum Pro 10,000 PSIG Hydraulic Calibration Pump
The Magnum Pro Calibration Pump M-10 uses a patented fully adjustable stroke control to allow for fast priming or filling of test systems. This gives the operator the ability to switch as needed to a smaller stroke for easier pumping at high pressure.
Features:
• Contoured cushion handles
• Patented protective cage around vent knob
• Mash proof vent valve (No Needle Valve)
• Priming feature
• Patented triple filtration (prevents pump failure due to dirt)
• A non-oil based lubricant is used on all moving parts
• Built in pressure relief valve (prevents over pressurizing)
• Shatter proof reservoir
• Oversized check valves for smooth controlled operation
• 2 year "quibble free" warrantee (includes dropping)
Specifications:
• 0 - 10,000 PSIG (700 Bar)
• Compatible with most hydraulic fluids, oils and water
• Connections (2 ports) 1/4 inch NPT
• Weight 3 lbs
• Made in the USA
We have kitted the M-10 Magnum Pro with a 10,000 PSIG Martel Test Gauge for a complete calibration kit. |
