Ashcroft DG25 Digital Pressure Gauge

<< Previous in Analog Test Gauges Next in Analog Test Gauges >>
OUR PRICE: $305.70
Item Number: DG25
Configuration: -51-N-0-M02L
Manufacturer: Ashcroft
Manufacturer Part No: DG25

Product Options

* denotes required field

Accuracy Selection*
Backlight Option*
Protective Rubber Boot*
Pressure Connection*
Ashcroft DG-25 Pressure Ranges*
Ashcroft DG25 Digital Gauge Calibration Options*
Ashcroft DG25 Misc. Options

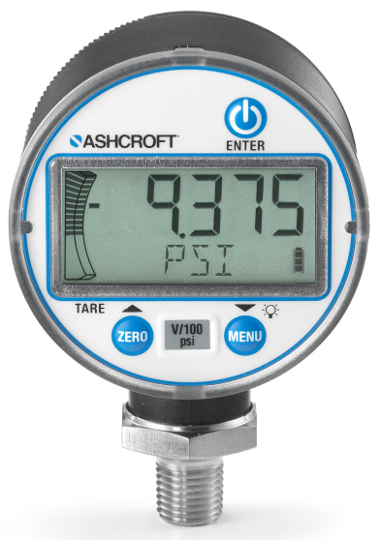

Ashcroft DG25 Digital Pressure Gauge

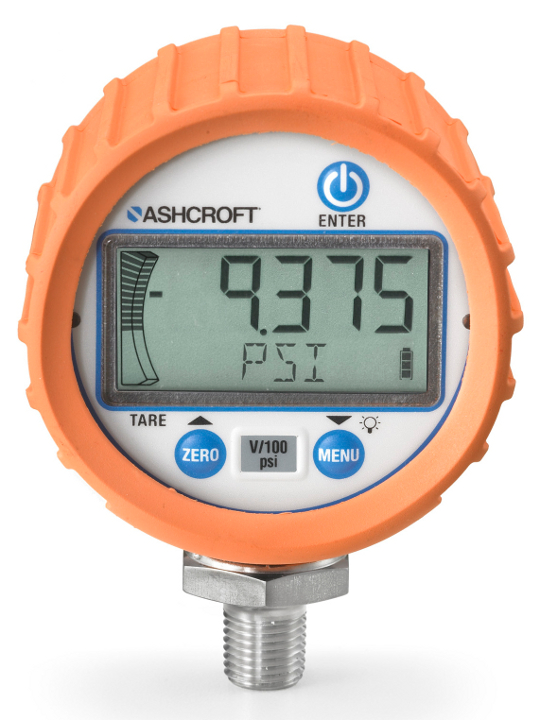

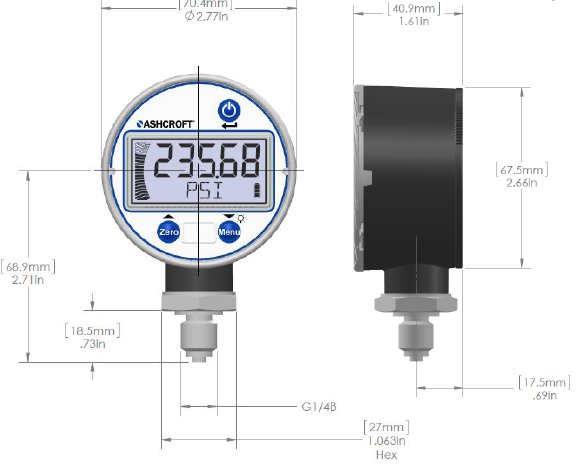

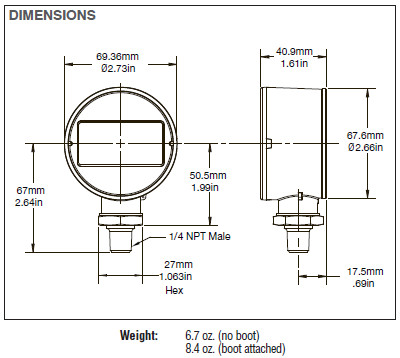

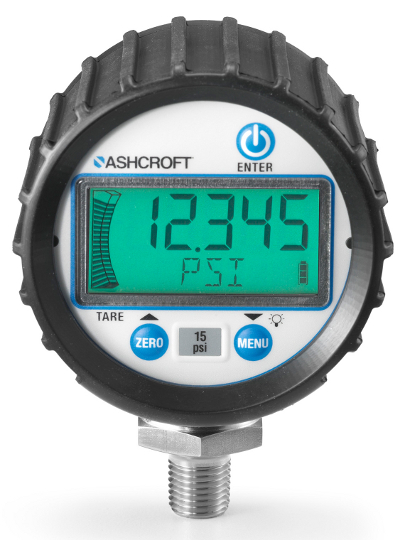

Ashcroft DG25 Digital Pressure GaugeAshcroft DG25 Digital Pressure Gauge (Optional Orange Boot)Ashcroft DG25 Digital Pressure Gauge (Optional Black Boot & Back Light)Ashcroft DG-25 Dimensions, Metric Thread Shown (1/4" NPT Standard)

Ashcroft DG25 Digital Pressure Gauge



     The Ashcroft DG25 series offers 0.5%
of span accuracy, while the laser welded
stainless steel sensor and socket make this
product suitable for use with a wide variety
of pressure media in demanding industrial
applications. This series is also available
with enhanced accuracy of 0.25% of span
making it suitable for many test and measurement
uses.

     IP 67 ingress protection rating means the
DG25 is suitable for demanding applications
such as equipment wash down.
Nine pre-programmed engineering units of
measure to read pressure in units applicable
to the process or familiar to the technician
using the gauge.

     The DG25 comes standard with many features
such as: tare, min and max memory, programmable
custom engineering units, and
pressure ranges from vacuum to 25,000 psi. The DG25 was designed with the OEM in
mind and can easily be custom configured
to meet unique requirements, add or delete
features and be customized with private
label keypad overlays.
Ashcroft DG25 Digital Gauge Features
  • 0.5% terminal point accuracy (0.25% optional)
  • Three durable long life button (redesigned) menu system
  • Full 5 digit LCD display with large .48˝
    character size
  • New bar graph display (20 segment)
  • Nine engineering units of measure plus one user programmable unit
  • Available in gauge, vacuum or compound ranges from -14.7 PSIG Vacuum
    through 25,000 PSIG
  • IP 67 weatherproof enclosure, (1 meter underwater immersion for 1 hour)
  • ASME 40.7, CE compliant, RoHs compliant, UL and
    cUL 61010-1(approval pending)
  • Improved battery life of up to 2000 Hours

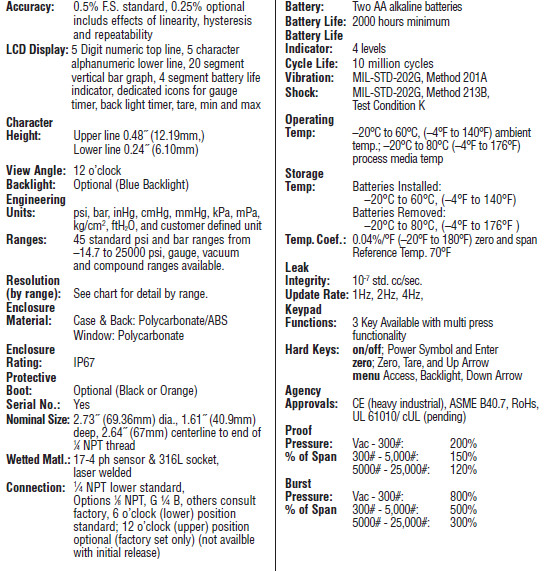

Ashcroft DG-25 Specifications
