Druck DPI-104 High Accuracy Digital Pressure Gauge

<< Previous in Pressure Calibrators Next in Pressure Calibrators >>
OUR PRICE: $811.00
Item Number: DPI-104
Manufacturer: Druck (GE)
Manufacturer Part No: DPI-104

Product Options

* denotes required field

Druck DPI-104 Range Selection*
Druck DPI-104 Pressure Kit Option*
NIST Traceable Calibration - Druck DPI-104 Gauge*

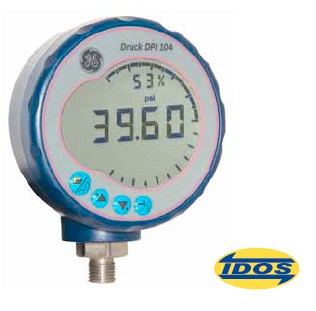

Druck DPI-104 Digital Pressure Gauge

Druck DPI-104 Digital Pressure Test Gauge


High Accuracy +/-0.05% FS Test Gauge



The DPI 104 is a microprocessor-controlled digital
pressure gauge that combines precision and
functionality in a compact, robust and simple-to-use
package. The DPI 104 matches advanced silicon sensor
technology with several convenient design features
resulting in an accurate, versatile yet affordable digital
test gauge. Supplied as a stand-alone process indicator
or in a kit with the widely proven Druck hand pumps, the
DPI 104 provides a reliable and economic solution for a
wide range of pressure sensing applications.


FEATURES:

  • 0.05% full scale (FS) accuracy
  • Pressure ranges to 20,000 psi (1400 bar)
  • Eleven selectable pressure units
  • Large, easy-to-read display with five-digit resolution
  • % pressure indication and additional bar graph for quick visual reference
  • Temperature compensated accuracy from 14°F to 122°F (-10°C to 50°C)
  • 0 to 5V analog output
  • Pressure switch test
  • Minimum/maximum, tare and alarm functions
  • IDOS compatible and RS232 serial interface
  • Networking capability (1 to 99 units)
  • Stainless steel or Inconel pressure cavity for aggressive media





Download DPI-104 Data Sheet (CLICK HERE)

TECHNICAL SPECIFICATIONS:

Accuracy:

0.05% F.S. (Includes non-linearity, hysteresis, repeatability and tempco (14 to 122 Deg F)
10 PSIG Range Limited to +/-0.15% FS

Case Size:

95 mm (3.74") x 55 mm (2.17") Deep; 13 Ozs

Case Material: ABS Plastic Sealed to NEMA 4/IP 65
Wetted Parts: 316 stainless or Inconel Welded
Socket Size: 1/4" NPT
Connection: Lower, Face Rotates 320 Degrees for Felixible Mounting Options
Ranges: See Table Above; All Ranges Read Negative Pressure
Battery: 1 x 9 Volt
Overpressure: 2x Working Pressure Except 20,000 PSIG Range (29,000 PSIG)
Vibration: Neets Defense Standard 66-31, 8.4 Cat III
Shock: Meets BS EN 61010:2001
Operating Temp: -10 Deg C to 50 Deg C (14 Deg F to 122 Deg F)
Storage Temp: -20 Deg C to 70 Deg C (-4 Deg F to 158 Deg F)
Update Rate: 500ms
Agency Approvals: CE Mark
Display Type: LCD
Display Digits: Five Total, 20 Segment Digital Bargraph (0-100% of Scale, 5% per Segment)
Character Height: 0.5"
Keypad Functions: On/OFF, MIN/MAX, Switch Test, 11 Range Selection, Anti-Tamper Menu Lock, Tare, Alarm
Engineering Units: PSI, kPa, MPa, Kg/CM2, mBar, Bar, In-Hg, In-H20, m-H20, mm-H2O, mm-Hg
I/O: Alarm: Open FET (250 mA Max, 24 VDC)
Analog: 0-5 VDC (0-100% Full Scale)
Up to 99 units can be networked
Pressure Switch Sensing (200 Ohm impedance)
Reads all Druck IDOS Remote Sensors for Range Expandability
PC Connection: RS-232 Interface (Optional SICAL Software Available)

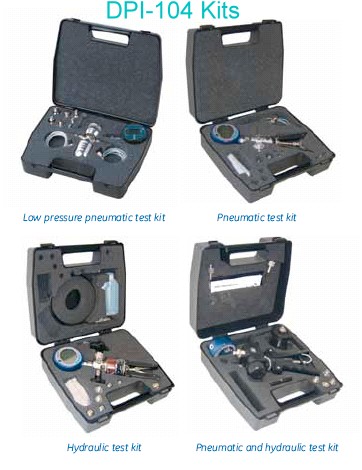

Pneumatic and Hydraulic Test Kits
The DPI 104 is included as a standard component in these test and calibration kits:

Low Pressure Pneumatic Test Kit
Includes: DPI 104; ranges to 30 psi (2 bar), PV 210 low
pressure pneumatic test pump, hose, adaptors, seal kit
and case.

Pneumatic Test Kit
Includes: DPI 104; ranges to 300 psi (20 bar), PV 211
pneumatic test pump, hose, adaptors, seal kit and case.

Hydraulic Test Kit
Includes: DPI 104; ranges to 15,000 psi (1000 bar),
PV 212 hydraulic test pump, hose, adaptors, seal kit
and case.

Pneumatic and Hydraulic Test Kit
Includes: DPI 104; ranges to 10,000 psi (700 bar),
PV 411A combined pneumatic and hydraulic test pump,
hydraulic reservoir, hose, adaptors, seal kit and case.
