Model T-930

pneumatic pressure pump is an easy-to-use single hand-operated pneumatic pump. The T-930 pump features both vacuum and pressure generation up to 35 bar (500 PSIG) and -28" Hg vacuum. One button (valve) makes it easy to switch from vacuum to pressure measurements. Built-in release valve, vernier valve for fine adjustment and dual pressure output enable safe and simple operation. The unit offers both metric and imperial threads on the reference connection and the hose.

Features:

    • Dual Source for Pressure and Vacuum
    • Fully Portable, Hand Operated Kit
    • Fine Pressure Adjustment and Vent Valves
    • Generates 500 PSI or -28" Hg Vacuum
    • Adjustable Stroke To Provide Over Pressure Protection
    • BSP and 1/4" NPT Ports
    • Compact Size

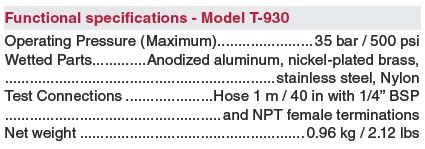

Specifications:
