Druck PV210 Low Pressure and Vacuum Hand Pump
|
Item Number: PV210
Manufacturer: Druck (GE)
Manufacturer Part No: PV210
* Whole number only
|
|
Druck PV210 Low Pressure and Vacuum Hand Pump
The Druck PV210 is an ideal tool for calibration checks on pressure transmitters, pressure switches, indicators, recorders and controllers. The PV 210 can be used as a portable pressure comparator in conjunction with various pressure indicating devices. This precision unit includes a unique user adjustable pressure relief setting, enabling setting of maximum pressure.
FEATURES:

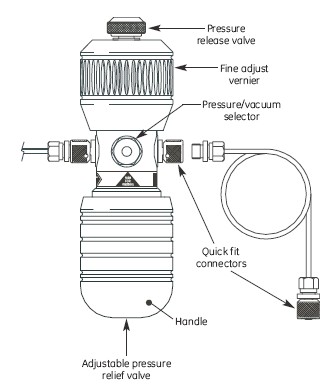

- Dual source of pneumatic pressure and vacuum
- Finger-tight quick fit connectors
- Extremely low pressures generated by using the fineadjust vernier alone
- Built-in pressure relief valve for setting maximum output pressure
- Fine control needle valve for pressure release
SPECIFICATIONS:
| Pressure Range: |
0 to 1250 inH2O, 0 to 45 psi |
| Vacuum Range: |
0 to 27 inHg |
| Relief valve adjustment: |
20 inH2O to maximum pressure |
| Materials : |
Bright nickel-plated brass, anodized aluminum, phosphorbronze,
Nitrile seals, nylon hose
|
| Dimensions (h x w): |
6.7 in to 1.8 in diameter |
 |
