Martel MC-1010 Process Signal Multifunction Calibrator

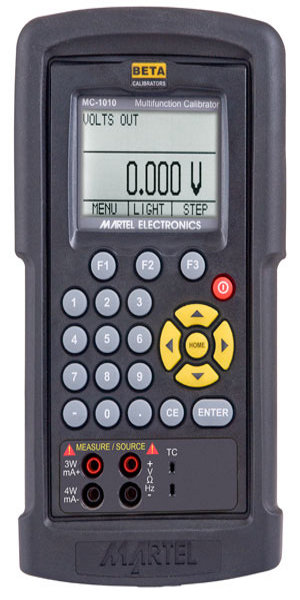

Martel Electronics MC-1010 Multifunction Process Calibrator

• Simple, straight forward, Intuitive user interface

• Easy to learn yet powerful 3 Key Martel Menu System

• New ClearBrite™ Graphic Display

• New streamlined case design

• ±0.4°C thermocouple/±0.3°C RTD accuracy

• ±0.015% of reading electrical accuracy
• Thirteen (13)Thermocouple and Thirteen (13) RTD types, plus YSI 400 Thermistor

• Separate Read and source modes

• Full Function 4 to 20 mA read, source, simulate and read/power modes with ±0.015% of reading accuracy

• Source or read 0 to 20 volts (±0.015% of reading accuracy)

• Direct keyboard entry enables quick output changes

• Store up to nine (9) set points for each output function

• RTD function compatible with all pulsed transmitters

• RS232 serial interface

• Supplied in full rubber boot; optional carrying case available

• Includes Factory Certificate with calibration data
• Compatible with Fluke 700 Series and Betaport-P Pressure Modules













Pressure Measurement Capabilities - Martel Electronics offers 29 standard pressure modules, covering gauge, vacuum, absolute, compound, and differential measurements. All modules are directly compatible with the Beta-Gauge II.With the Model BPPA-100 Pressure Module Adapter, all modules (with the exceptionof the DC measurement model) are fully compatible with the Martel MC-1210 and MC-1010 Multi-Function Calibrators, the BetaGauge 330, 321A, 311A and 301 Pressure Calibrators, the DMC-1410 Documenting Multi-Function Calibrator, and the Martel Electronics M2001 and 3001 Laboratory/Bench Standards. Pressure ranges may be displayed in any of 13 user selectable units.Water density correction factors of 4 °C, 20 °C, or 60 °F can be selected for either water column unit. The choice of pressure unit may be restricted by limitations on resolution of the instrument display of the particular calibrator the module is used with. For optimum mechanical strength, external pressure connection is made by a 1/8” FNPT 316SS connector welded to a stainless steel metal plate.
