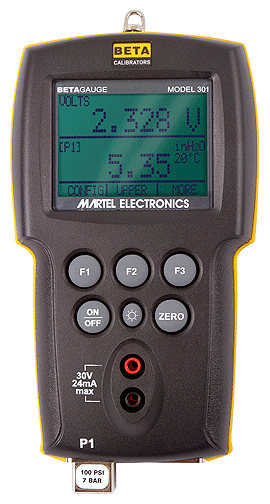

Martel BetaGauge 301 Pressure Calibrator

<< Previous in Pressure Calibrators Next in Pressure Calibrators >>
OUR PRICE: $1,245.42
Item Number: BG301
Manufacturer: Martel Electronics (Beta)
Manufacturer Part No: BG301

Product Options

* denotes required field

Martel BetaGauge 301 Pressure Range Selection*
BetaGauge 301 Calibration Certificate Options*
BetaGauge 301 Pressure Kit Selection*
Martel BetaGauge 301 Pressure Calibrator

Martel BetaGauge 301 Pressure Calibrator

    The BetaGauge 301 is a general purpose, value oriented pressure calibrator. With one internal pressure range and available adapter for external BetaPort-P pressure modules, the possibilities are extensive. Available Ranges and Engineering Units.  The available internal sensor ranges are: 1, 5, 30, 100 and 300 PSIG  Note: 30 and 100 PSI ranges are calibrated from -12 PSI to full scale. Pressure may be displayed in the user's choice of engineering units, which include:

• PSI • Bar • mBar
• kPa • MPa • kg/cm2
• cm H2O @ 4 Deg C • cm H2O @ 20 Deg C
• cm H2O @ 60 Deg F • m H2O @ 4 Deg C
• m H2O @ 20 Deg C • m H2O @ 60 Deg F
• in H2O @ 4 Deg C • in H2O @ 20 Deg C
• in H2O @ 60 Deg F • ft H2O @ 4 Deg C
• ft H2O @ 20 Deg C • ft H2O @ 60 Deg F
• mm Hg, in Hg • USER defined unit

Features:

  • One isolated pressure sensor
  • External pressure module connection (BetaPort-P pressure modules 29+ ranges) (Requires BPPA-100 adapter & pressure module)
  • Internal 24 V DC loop power supply
  • Measure 24 mA or 30 V DC
  • Large, backlit, configurable display for 1, 2 or 3 variables
  • Switch test on Pressure (internal or external)
  • Five (5) frequently used setups can be saved
  • % error and damping functions
  • Compact handheld design
  • Powered by 4 AA Alkaline batteries


Specifications:

Pressure Accuracy: All ranges +/-0.05% FS
DC Measure Accuracy: mA +/-0.015% of rdg; +/- 0.002 mA
Volts +/-0.015% of rdg; +/-0.002 V
Temperature Effect: No effect on accuracy from 18 Deg to 23 Deg C
Add +/-0.005% FS/ Deg C for temp outside range
Operating Temp: -10 Deg to +50 Deg C
Power: Battery Four (4) AA Alkaline cells
Battery Life: >35 hours continuous typical usage
Dimensions: 8.3" H x 3.9" W x 1.8"D
(21 cm H x 10 cm W x 4.6 cm D)
Weight: 1 lb., 4 oz. (0.57 kg)
Connectors/Ports: Pressure (1) 1/8" FNPT
BetaPort-P pressuremodule
Std. banana jacks for mA and V

Each unit includesSoft case, batteries, manual, factory calibration certificate, test leads

The BetaGauge 301 is also available in a kit that includes the calibrator base package with a hard case, tubing, fitting and a pneumatic pressure calibration pump. Based on the pressure range the calibration pump is either the MECP100 or MECP500.



Additional Information

BetaGauge 301 Technical Data Sheet
