Fluke 789 Loop Calibrator Processmeter

<< Previous in mA Loop/DC Calibrators Next in mA Loop/DC Calibrators >>
OUR PRICE: $1,271.99
Item Number: FLUKE-789
Manufacturer: FLUKE
Manufacturer Part No: FLUKE-789

Product Options

* denotes required field

Fluke 789 Calibration Options*

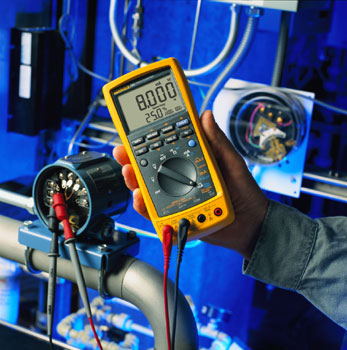

Fluke 789 Loop Calibrator Processmeter

Fluke Model 789 Process Meter & Calibrator



      Fluke combined a loop calibrator and a DMM to give process technicians double the power in one tool (the Fluke 787).  Now we made it even better - the ultimate loop calibration multimeter - the Fluke 789 ProcessMeter. The 789 has a display that's not only twice as large, but also twice as bright with two levels of backlighting. With its built-in, selectable 250 ohm HART® resistor, it eliminates the need to carry a separate resistor with you.  Now process technicians can do a lot more while carrying a lot less.

Features:

  • DMM and Loop Calibrator with
  • 24 V Loop power supply
  • HART mode setting with loop power (adds 250 ohm resistor)
  • 100 % larger dual display
  • 1,200 ohm drive capability on mA source
  • Enhanced backlight with two brightness settings
  • 0-100 % mA Span Check buttons to toggle between 4 and 20 mA
  • Infrared I/O port for use with FlukeView Forms Software
  • Externally accessible fuses for easy replacement
  • DMM designed to meet 1000 volt IEC 1010 CAT III standards
  • Precision 1000 V, 440 mA true-rms digital multimeter
  • Frequency measurement to 20 kHz
  • Min/Max/Average/Hold/Relative modes
  • Diode Test and Continuity Beeper
  • Simultaneous mA and % of scale readout
  • 20 mA dc current source/loop calibrator/simulator
  • Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
  • Externally accessible battery for easy battery changes
  • IR communication port allows data to be logged to optional
  • FlukeView Forms Software  for graphical analysis and reporting
Technical Specifications:
Measurement Function
V dc Range and Resolution
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
Best Accuracy (% of reading + LSD)
0.1 % + 1
V ac (true-rms) Range and Resolution
400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V
Best Accuracy (% of reading + LSD)
0.7 % + 2
mA dc Range and Resolution
30.000 mA
Best Accuracy (% of reading + LSD)
.05 % + 2
A dc Range and Resolution
1.000 A (0.440 A continuous)
Best Accuracy (% of reading + LSD)
0.2 % + 2
A ac Range and Resolution
1.000 A (0.440 A continuous)
Best Accuracy (% of reading + LSD)
1 % + 2
Resistance Range and Resolution
400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M
Best Accuracy (% of reading + LSD)
0.2 % + 1
Frequency (0.5 Hz to 20 kHz) Range and Resolution
199.99 Hz, 1999.9 Hz, 19.999 kHz
Best Accuracy (% of reading + LSD)
.005 % + 1
Diode Test Range and Resolution
2.000 V (shows diode voltage drop)
Best Accuracy (% of reading + LSD)
2 % + 1
Continuity Range and Resolution
Beeps for resistance < approx. 100 ohms



Output Function
DC Current Output
(Internal battery operation)
Range and Resolution
0.000 to 20.000 mA or 4.000 to 20.000 mA
(selectable at power-up)
Over-range to 24.000 mA

Drive Capability (% of span)
24 V compliance, or,
1,200 Ohms, @ 20 mA

Accuracy
.05 %

DC Current Simulate
(Ext. 24 Volt loop supply)
Range and Resolution
0.000 to 20.000 mA or 4.000 to 20.000 mA,
(selectable at power-up)
Over-range to 24.000 mA

Drive Capability (% of span)
1000 Ohms, @ 20 mA

Accuracy
.05 %

24 V Loop SupplyRange and Resolution
Minimum 24 V

Drive Capability (% of span)
250 Ohms @ 20 mA

Accuracy
> 24 V

Current Adjustment Modes Range and Resolution
Manual: 0.001 mA, 0.1 mA, 25 % and 100 % step
Automatic: Slow Ramp, Fast Ramp, 25 % step

 *Temperature range of 18 C to 28 C, for one year after calibration


General Specifications
Maximum voltage applied between
any jack and earth ground:
1000 V RMS
Storage temperature: -40 C to 60 C
Operating temperature: -20 C to 55 C
Temperature coefficient:
0.05 x (specified accuracy) per C
(for temperatures < 18 C or > 28 C)
Relative humidity 95 % up to 30 C;
75 % up to 40 C; 45 % up to 50 C;
35 % up to 55 C
Vibration: Random, 2 g, 5-500 Hz
Shock: 1 meter drop test
Safety: Designed in accordance with
EN61010, ANSI/ISA S82.01-1994 and
CAN/CSA C22.2 No. 1010..1-92
Over-voltage Category III
Size: 50 mm H x 100 mm W x 203 mm L
(1.97 in H x 3.94 in W x 8.00 in L)
Weight: 600 g (1.3 lbs)
Battery: Four AA alkaline batteries
Battery life:
140 hours typical (measurement), 10 hours
typical (sourcing 12 mA)
Warranty: 3 years
