Fluke 717-30G 30 PSIG Pressure Calibrator

<< Previous in Pressure Calibrators Next in Pressure Calibrators >>
OUR PRICE: $2,005.99
Item Number: FLUKE-717 30G
Manufacturer: FLUKE
Manufacturer Part No: FLUKE-717 30G
Fluke 717

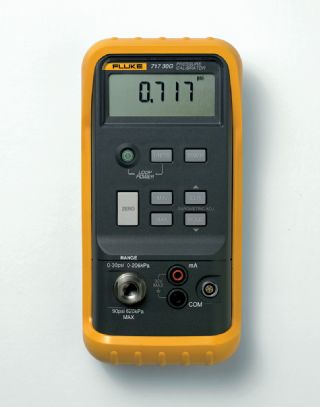

Fluke 717 Pressure Calibrator


The the 717 and 718 Pressure Calibrators, present cost-effective solutions for highly accurate pressure measurements over a wide range of temperatures. These new calibrators connect with any of the 29 Fluke 700Pxx Pressure Modules to address a wide variety of gage, differential, absolute, vacuum, and dual (compound) pressure applications. Fluke 717 and 718 can address the majority of applications with their internal sensors, or can connect to a Pressure Module to address more varied applications.

Features:

  • Calibrate P/I transmitters with simultaneous pressure and current measurement
  • Measure pressure and vacuum to 0.05 % of full scale with internal 30 psig sensor
  • Compatible with non-corrosive gasses and liquids
  • Measure pressure to 10,000 psig using one of 29 Fluke 700Pxx Pressure Modules
  • Measure mA with 0.025 % accuracy and 0.001 mA resolution
  • 24 V loop power supply
  • Select 11 different engineering units
  • Zero, min, max, and hold functions
  • 3-year warranty

Technical Specifications:

Function Specifications
Measure Pressure (internal sensor) Over Pressure 3xFS (717 30G only) Range: -12 to 30 psi (-83 to 207 kPa)

Resolution: 0.001 psi (0.01 kPa)

Accuracy: 0.05 % full scale
Note: Gasses/liquids (non-corrosive) Zero, Min, Max, Hold, Damp
Measure Pressure (with Pressure Modules) Over pressure per pressure module specs Range: 29 pressure modules, 1.0 in. H20 / 0.25 kPa to 10,000 psi / 69 Mpa

Resolution: To 0.0001 psi, per Pressure Module specs

Accuracy: To 0.05 % of full span, per Pressure Module specs
Note: Media compatibility per Pressure Module Specs, Zero, Min, Max, Hold, Damp
Measure mA Range: 0 to 24 mA
Resolution: 0.001 mA
Accuracy: 0.025 % + 1 count
Loop Supply Range: 24 V dc
Resolution: N/A
Accuracy: +/- 10 %
Note: Drive; 20 mA into 1000 W for battery >6.8 V; 700 W for battery 5.8 to 6.8 V



General Specifications
Operating temperature -10 C to 55 C
Non-operating temperature -40 C to 60 C
Relative humidity (% RH operating without condensation): 95 % (10 C to 30 C);
75 % (30 C to 40 C);
45 % (40 C to 50 C);
35 % (50 C to 55 C)
Operating altitude 3,000 m max
Vibration Random, 2 g, 5-500 Hz
Shock 1 m drop test
Safety CSA C22.2 No. 1010.1:1992
Power Single 9 V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline
Size (with holster) 201 mm L x 98 mm W x 52 mm D (7.93 in X 3.86 in x 2.06 in)
Weight (with holster) Approx. 600 g (21 oz)
Size (without holster) 187 mm L x 87 mm W x 32 mm D (7.35 in X 3.41 in x 1.25 in)
Weight (without holster) Approx. 330 g (12 oz)
Display Clear, 5 digit liquid crystal
Warranty 3 years
