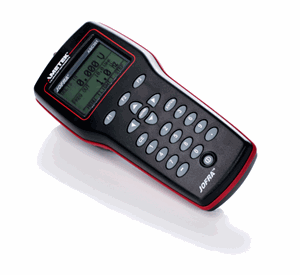

Ametek Jofra ASC301 Multifunction Process Calibrator
|
Item Number: ASC301
Manufacturer: Ametek (JOFRA)
Manufacturer Part No: ASC301
|

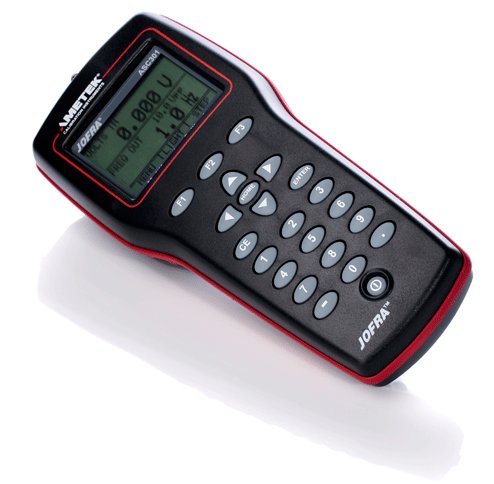

 Ametek Jofra ASC-301 Multifunction Process Calibrator Ametek Jofra ASC-301 Dual Screen Display |
|
Ametek Jofra ASC301 Multifunction Process Signal Calibrator
Top mounted lead terminals keep your calibrator keypad and display clear of obstruction and test lead tangles
The Ametek JOFRA ASC301 is a portable process signal calibrator that provides the functionality and accuracy you expect from a laboratory calibration system, but compact enough to fit into the tool box and be operated with one hand for easy field calibration. The Jofra ASC301 is more than a signal calibrator; Combine it with optional JOFRA’s APM external pressure modules or a JOFRA dry-block calibrator and it will calibrate pressure and temperature system. Add the JOFRACAL software to document all your calibration work, create procedures and certificates.
The full numerical keypad with a series of function keys and the cursor keys, provide a simple and quick user interface. The new ClearBrite graphical display offer the best visibility. The high accuracy of the Jofra ASC301 has not been achieved by another competitive calibrator. The ASC301 has fuseless protection up to 250 VAC – might save you a calibrator and an absent minded technician.
JOFRACAL calibration software ensures easy calibration of RTD´s, thermocouples, transmitters, temperature swiches, pressure gauges and pressure switches. JOFRACAL can be used with all JOFRA calibration instruments. When used with ASM-800 signal multi scanner, JOFRACAL can perform a simultaneous semi automatic calibration on up to 24 pressure and/or temperature devices under test in any combination. JOFRACAL software controls the complete calibration procedure, stores the results and provides a calibration audit trail through hard-copy certificates. All calibration data are stored for each sensor to monitor drift and optimise recalibration intervals. A scheduler feature allows planning of future calibrations.
Features - Ametek Jofra ASC-301 calibrator:
- Multi-function signal calibrator - Robust custom housing. Ideal for both field and work-shop use. The process engineers best tool
- Handy Terminal Block - All leads are located at the top of the calibrator, keeping them away from the display and keypad
- High accuracy - ASC301 accuracy is designed to meet high demands from modern sensors and transmitters

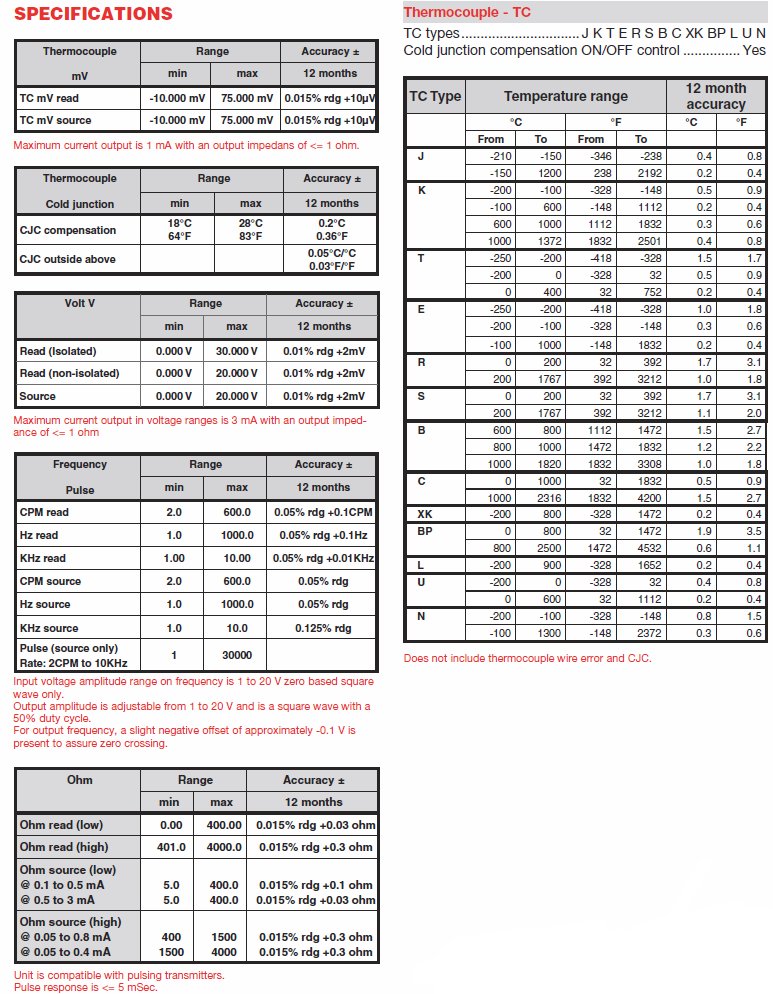

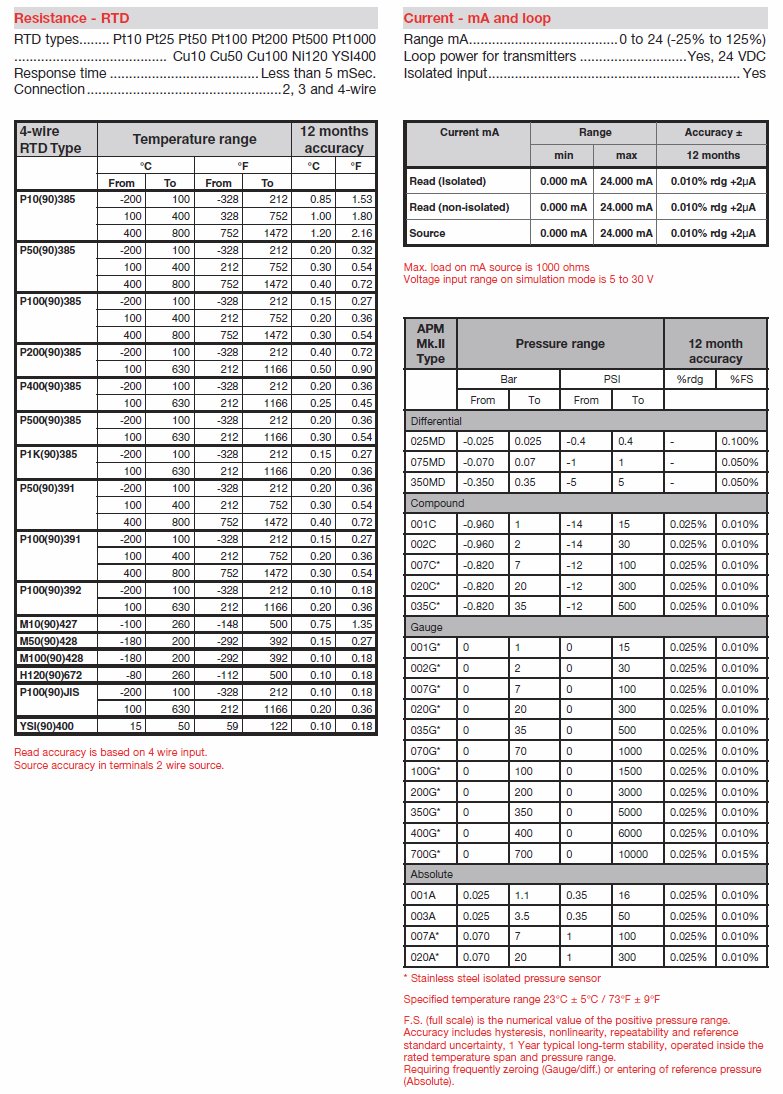

- Input and output - RTD: 14 different types, Thermocouple: 13 different types, Current 0-24 mA DC, Voltage 0-20, VDC, Frequency 0 to 10 KHz, Pulse train output, Resistance 5 to 4000 Ohm
- Simultaneous read-back - Including isolated read-back from device under test of mA, V, and pressure
- Fast RTD simulation - This feature is fast enough to work with pulsed transmitters and PLC´s

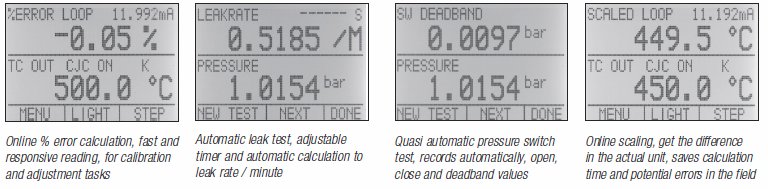

- Calibrate pressure - Full featured pressure calibrator, just purchase an optional JOFRA APM, and benefit from, semi automatic leak-test, pressure-switch calibration and more…

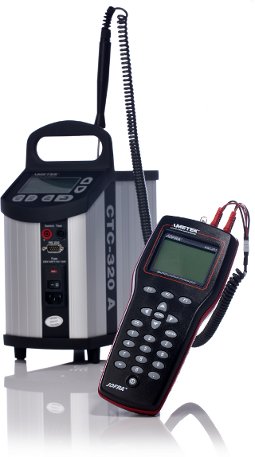

- Calibrate temperature -Use the ASC301 together with JOFRA temperature calibrators, add measurement channels for sensors or temperature switches
- Measure temperature - ASC301 can be used as high accuracy thermometer, ASC301 works with RTD´s and CvD equations, to obtain true temperature

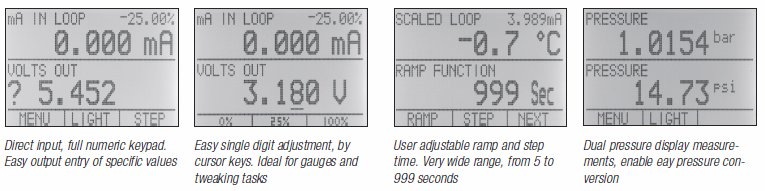

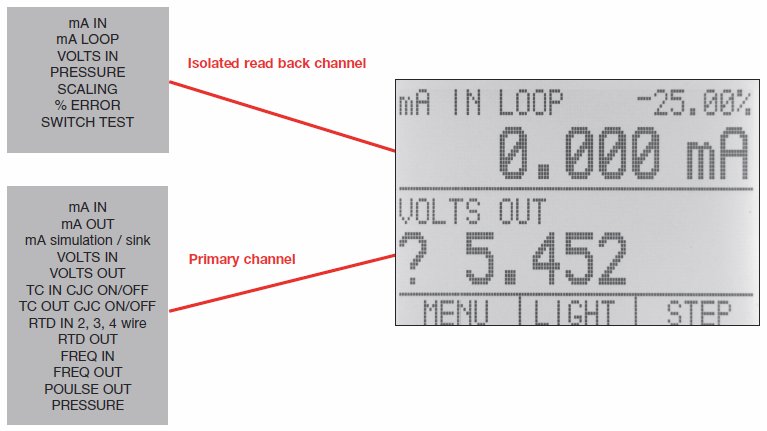

- Optimal read out visability - Large ClearBrite™ display shows source and readback signals at the same time, perfect for trimming transmitters without using an additional instruments
- Fuseless Protection - Goffy technician hooked up the calibrator to 120 VAC ? No probelem, it can withstand up to 250 VAC, but can he?
- High Temperature Accuracy - Enter your custom SPRT Van Dusen coefficients into the ASC and now you have a super accurate, portable thermometer
 |
OPTION T - Temperature Sensor
• Option T, temperature sensor,-40 to 155°C (-40 to 311°F)
• Delivered with international traceable calibration certificate and CvD coefficients
• Sensor dimensions ø 4 x 200 mm + handle
• Calibration points, -40/-20/0/50/100/155°C(-40/-4/32/122/212/311°F)
• Calibration accuracy ± 0.030°C (0.054°F)
|
|
