Ametek ASC-400 Advanced Signal Calibrator

<< Previous in Multifunction Calibrators Next in Multifunction Calibrators >>
OUR PRICE: $2,655.00
Item Number: ASC-400
Manufacturer: Ametek (JOFRA)
Manufacturer Part No: ASC-400

Product Options

* denotes required field

Calibration Options*
BARO Module (Optional)
Accessory Options
Ametek ASC-400 Advanced Signal Calibrator
Ametek ASC-400 Advanced Signal Calibrator
Ametek ASC-400 Advanced Signal Calibrator

Read and source RTD, TC, Current, Voltage, Frequency, and Resistance with Puls train output. Combine it with APM CPF pressure module series or a dry block calibrator to document pressure and temperature tests.

Features

  • Optimal read out visibility and high accuracy
          Large full color display and extremely user friendly interface. The ASC-400
          accuracy is designed to meet high demands
from modern sensores and
          transmitters
  • Input and output
          RTD: 16 different types, TC: 13 different types, Current 0-24 mA DC, Voltage
          0-20 VDC, Frequency 0.05 to 10,000 Hz,
Pulse train out-put, Resistance 5 to 4000
          Ohm
  • Simultaneoues read-back and fast RTD simulation
          Including isolated read-back from device-under-test of mA, V, and pressure. The RTD
          simulation feature is fast enough
to work with pulsed transmitters and PLC´s

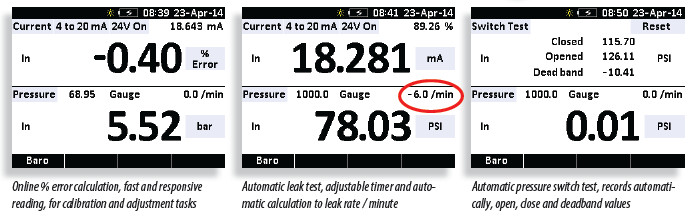

  • Calibrate pressure and temperature
          Full featured pressure calibrator, just apply an APM, and benefit from, automatic leak-test,
          pressure-switch calibration
and more… Use the ASC-400 together with JOFRA
          temperature calibrators, add measurement channels for sensors
or temperature switches
  • Measure temperature
          ASC-400 can be used as high accuracy thermometer, ASC-400 works with RTD´s and CvD
          equations, to obtain true
temperature, based on “true ohm” technology!










Optional BARO Module

The BARO option turns any gauge
measuring APM into an absolute
measuring device.

Accuracy: ± 0.5 mbarA / 0.00725 psiA
Range: 700 to 1100 mbarA / 10.153 to 15.954 psiA

Includes all effects of linearity, hysteresis, temperature (-10 to 50°C /
14 to 122°F) and stability for one year.

Please note the BARO option is factory installed.

Technical Specifications
