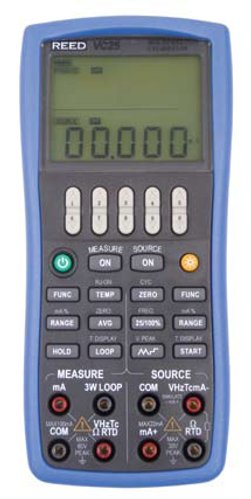

Reed Instruments VC25 Process Calibrator
|
Item Number: VC25
Manufacturer: Reed Instruments
Manufacturer Part No: VC25
|
|
Reed Instruments VC25 Process Calibrator
Features:
-
Source and measure functions can be operated, and results displayed, simultaneously
-
Sources and reads DC voltage and current, resistance, temperature, contact, frequency and pressure
-
Accurate to 0.02%
-
Simulates and reads 3 RTDs and 8 thermocouples
-
Measures 2 or 3-wire RTDs
-
Compatible with 32 pressure modules from 2.5kPa to 70MPa
-
24V loop power supply
-
Provides 25% or 100% step output for DC current either manually or automatically
-
Large 2-line LCD with whie LED backilght
-
User selectable auto power off

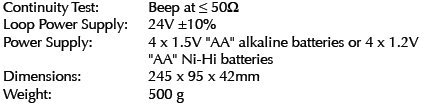

General Specifications:

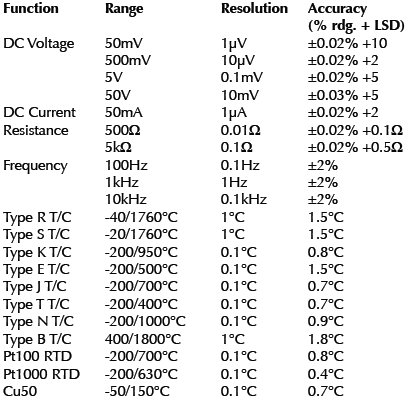

Read Specifications:

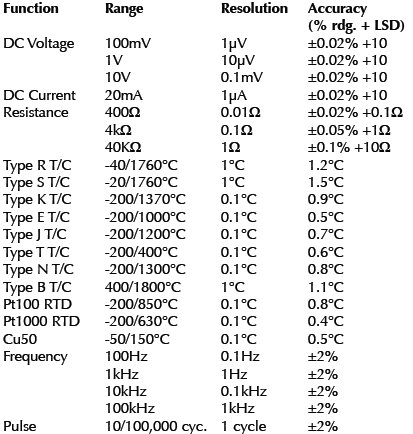

Source Specifications:
|
|
|
