Martel PPC-9001
Pressure Calibrator

     The PPC-9001 Precision Pressure Calibrator is designed to
meet the needs of the most demanding field calibration
applications. Its microprocessor design yields many useful
features including a built-in RS-232 port for data transfer to a PC.

     The PPC-9001 offers a wide range of pressure media
compatibility and a pressure connection manifold which
allows secure mounting of the optional hand pump. The
built-in loop power supply along with milliamp or voltage read
capability make the PPC-9001 ideal for calibrating pressure
and flow transmitters.

Features:

    • +/- 0.05% Full Scale Accuracy
    • Microprocessor Based Design
    • Compatible with Wide Range of Pressure Media
    • Simultaneous Display of Pressure vs
    • Milliamps or Voltage Signals
    • Built-in 24 Volt Loop Power Supply
    • Built-In RS-232 Interface
    • Optional Hand Pump Attaches as Pressure Source
    • Rugged Manifold with Three Connection Ports
    • Easy User Access to Pressure
    • Calibration Adjustment

Each unit includes:

 PPC-9001K Pressure Kit Option

Each Kit Option Includes PPC-9001, MECP100 Hand Pump,
carrying case, test leads,  AC adapter, fittings, tools,
4 AA batteries, manual, and Factory Calibration Certificate

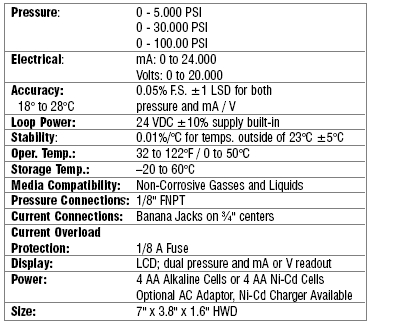

Technical Specifications:
