Hart Scientific 9102S Dry Block Calibrator

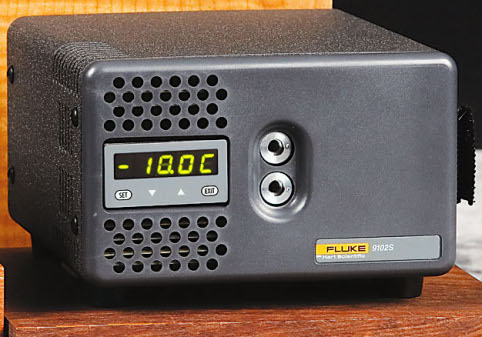

Hart Scientific Model 9102S Dry Block Calibrator

    Hart's new line of portable dry-wells is incredible.  They're the smallest, lightest and most portable dry-wells in the world. For work in the temperature range of -10 C to 122 C, Hart's Model 9102 HDRC dry-well is another first in the industry.

    This new dry-well is only 3.25 inches high and 6 inches wide, achieves temperatures as low as -10 C, is NIST-traceable and is accurate to ±0.5 C. The Model 9102 HDRC is excellent for dial gauges, digital thermometers, bulb switches and other sensors that need calibration below ambient. It's perfect for ISO-9000 quality programs because it's NIST-traceable.

    The 9102 dry-well redefines portability and speed. You can take it  anywhere you need to go, and when you get there you won't have  to read a magazine while you wait for it to reach its set-point temperature.



    It has two wells so you can use one for a reference thermometer to increase accuracy. Both wells are 1/2 inch in diameter, and each has inserts available for almost any sensor size.  The 9102 also has a battery pack option that gives you approximately four hours of field use when AC poweris unavailable.

Features:

• 14 F to 252 F (-10 C to 122 C)
• Weighs Only 4 Lbs.
• Accuracy of +/-0.9 F (14 F to 252 F)
• Two Wells - One for a Reference Thermometer to Increase Accuracy
• Stability of +/-0.36 F



  Technical Specifications:





  Range:	14 F to 252 F (-10 C to 122 C)
  Accuracy:	14 F to 212 F: +/-0.9 F (-10 C to 100 C: +/-0.5 C) 212 F to 252 F: +/-1.8 F (100 C to 122 C: +/-1.0 C)
  Stability:	+/-0.36 F (±0.2 C)
  Heating Times:	Ambient to 212 F (100 C): 10 Minutes
  Stabilization:	5 Minutes
  Cooling Times:	Ambient to 32 F (0 C): 10 Minutes
  Well Depth:	4 inches (102 mm)
  Removable Inserts:	Available from 1/16" (1.6 mm) to 7/16" (11.1 mm) [1/4" (6.4 mm) and 3/16" (4.8 mm) Included]
  Power:	115 VAC (±10%) to 230 VAC (±10%), 50/60 Hz
  Size:	3.25"H x 6" W x 6.75" D (83 x 152 x 171 mm)
  Weight:	4 lb. (1.8 kg)
  Certification:	Includes 6-Point, NIST-Traceable Certificate of Calibration with Dataat the Following Points: -10 C, 25 C, 50 C, 55 C, 100 C and 122 C
