Fluke 333A Clamp Meter

<< Previous in Fluke & Hart Scientific Next in Fluke & Hart Scientific >>

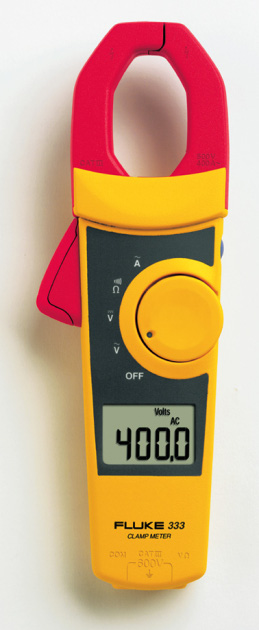

Fluke 333A True RMS Clamp Meter

OUR PRICE: This unit has been discontinued. Please call (732) 632-6400 for replacement options.
Item Number: 333A
Manufacturer: FLUKE
Manufacturer Part No: 333A

Fluke 333A TRMS Clamp On Meter

Clamp meters that fit the way you work

  • Three year warranty
  • Small body and jaws fit perfectly in your hand and into
    tight places
  • Handy 'Display Hold' button keeps measurements on the
    display
  • Meter controls are positioned so current measurements can be
    done with one hand (index finger on clamp opening lever and
    thumb on rotary switch)
  • Large, backlit display (on most models) is easy-to-see
  • In-rush current function (on most models) for measuring starting
    current for motors, lighting, etc.
  • Auto shut-off maximizes battery life so the meter works when
    you need it
  • Improved low current measurement accuracy from new
    microprocessor technology
  • Five different models to meet your exact needs

Models:

  • Fluke 333A - Rugged reliability at a basic price, measures
    ac amps, ac/dc volts and ohms
  • Fluke 334A - Large display with backlight, measures ac amps,
    ac/dc volts, ohms and motor start-up current
  • Fluke 335A - A True-rms clamp meter, large backlit display,
    measures ac amps, ac/dc volts, ohms and motor start-up
    current
  • Fluke 336A - A True-rms clamp meter that measures ac/dc
    current and voltage, ohms, motor start-up current with
    large display and backlight
  • Fluke 337A - The top-of the-line True-rms clamp meter,
    large jaw measures ac/dc current and voltage, ohm,
    motor start-up current (in-rush), frequency, MIN/MAX
    capability and a large backlit display





Safety conformance: IEC 1010-2-032, 600V CAT III

Specifications:
Volatage DC Range: 0-600.0 V
Accuracy: 1% ±5 counts
Voltage AC

Fluke 333A/334A
Range: 0-600.0 V
Accuracy: 1% ±5 counts (50/60 Hz)
AC Response: Averaging

Fluke 335A
Range: 0-600.0 V
Accuracy: 1% ±5 counts (50/60 Hz)
AC Response: True-RMS

Fluke 336A/337A
Range: 0-600.0 V
Accuracy: 1% ±5 counts (20-100 Hz),
6% ±5 counts (100-400 Hz)
AC Response Time: True-RMS

Current DC

Fluke 336A
Range: 0-600.0 A
Accuracy: 2% ±3 counts

Fluke 337A
Range: 0-999.9 A
Accuracy: 2% ±3 counts

Current AC

Fluke 333A/334A
Range: 0-400.0 A
Accuracy: 2% ±5 counts (50/60 Hz)
AC Response: Averaging

Fluke 335A
Range: 0-600.0 A
Accuracy: 2% ±5 counts (50/60 Hz)
Crest Factor (50/60 Hz): 2.4 @ 500A, 2.0 @ 600A, add 2% for CF>2
AC Response: True RMS

Fluke 336A
Range: 0-600.0 A
Accuracy: 2% ±5 counts (10-100 Hz),6% ±5 counts (100-400 Hz)
Crest Factor (50/60 Hz): 3 @ 500A, 2.5 @ 600A
AC Response: True RMS

Fluke 337A
Range: 0-999.9 A
Accuracy: 2% ±5 counts (10-100 Hz), 6% ±5 counts (100-400 Hz)
Crest Factor (50/60 Hz): 3 @ 500A, 2.5 @ 600A, 1.42 @ 1000A, add 2% for CF>2
AC Response: True RMS

Resistance Fluke 333A
Range: 0-600.0 Ohm
Accuracy: 1.5% ±5 counts

Fluke 334A/335A/336A/337A
Range: 0-600.0 Ohm, 6001 - 6000 Ohm
Accuracy: 1.5% ± 5 counts
Frequency Fluke 337A
Range: 5-400Hz
Accuracy: 0.5% ±5 counts
Trigger Level: 10-100 Hz >= 5A, 5-10 Hz, 100-400 Hz >=10A
Inrush Current Fluke 334A/335A/336A/337A
Integration Time: 100ms
Continuity <= 30 Ohm
MIN/MAX Fluke 337A Only

Enviornmental Specifications:
Operating Temperature: -10°C to 50°C
-14°F to 122°F
Storage Temperature: -40°C to 60°C
-22°F to 140°F
Operating Altitude 2,500 meters max, 6,500 ft. max
Temperature
De-rating
Add 0.1 x specified accuracy for each °C above 28°C or below 18°C (above 82.4°F to 64.4°F)

Safety Specifications
Safety Rating IEC 1010-2-032, 600V CAT III

Mechanical & General Specifications:
Size Fluke 333A/334A/335A
240mm x 80mm x 40mm (9.375" x 3.125" x 1.625")

Fluke 336A/337A
250mm x 80mm x 40mm (9.875" x 3.125" x .625")
Weight 310 g (11 oz)
Warranty Three years
Battery Life Alkaline approximately 150 hours continuous
Automatic low battery indicator
Backlight Fluke 334A/335A/336A/337A
Display Hold Yes
