Fluke PV350 Pressure & Vacuum Module

<< Previous in Pressure Calibrators Next in Pressure Calibrators >>
OUR PRICE: $619.99
Item Number: PV350
Manufacturer: FLUKE
Manufacturer Part No: PV350

Product Options

* denotes required field

NIST Traceable Calibration*

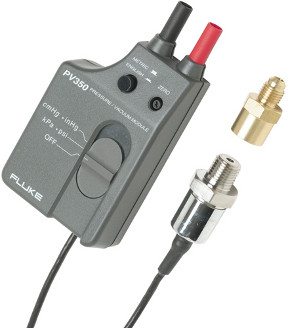

Fluke PV350 Pressure & Vacuum Module

Fluke PV350 Pressure Vacuum Module


Measure Fuel, oil or transmission pressure
or engine vacuum an any DMM

     The Fluke PV350 measures gauge pressure; the
difference between atmospheric (barometric) pressure
and the pressure (or vacuum) applied to the pressure
port on the transducer. It then converts that measurement
to 1mV dc per unit. The PV350 is compatible with Industrial
gases and liquids that are compatible with 316 stainless steel.
The DMM has to have input impedance of 10 M-ohms.

     • Pressure Range: 0.5 to 350 psig (3.447 to 2413 kPa)
     • Vacuum Range: 0 to 29.9 inch Hg (0 to 76cm Hg)
     • Basic Accuracy: Pressure: +/-(1% of reading + 0.3 psig)
     • Basic Accuracy: Vacuum: +/-(1% of reading + 0.5 inch Hg)
     • Output Signal: 1mV per unit (psi, kPa, cm-Hg, in-Hg)
     • Maximum Working Pressure: 500 psi
     • Pressure Port Connection: ¼ inch MNPT
     • Cable Length: 8 feet
     • Safety Standards: Complies requirements of ANSI/ISA S82.03-1988.
     • Protection Class III per IEC 1010-1-1990. Annex H.
