Fluke 753 Documenting Process Calibrator

<< Previous in mA Loop/DC Calibrators Next in mA Loop/DC Calibrators >>
OUR PRICE: $5,499.99
Item Number: FLUKE-753
Manufacturer: FLUKE
Manufacturer Part No: FLUKE-753

Product Options

Fluke 750 Series Calibration Options

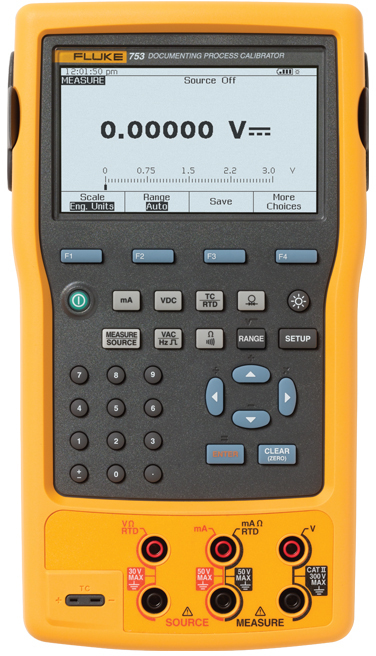

Fluke 753 Documenting Process Calibrator

Fluke 753 Documenting Process Calibrator


     Fans of the time tested Fluke 743B have a reason to rejoice!  Fluke presents the new and better Fluke 753 as a direct replacement for the ever popular Fluke 743.  There is no need to retrain technicians, the new user interface is nearly identical to the popular 740 series calibrators and an improved display makes these new calibrators a winner for those used to using 740 series calibrators.

     Improvements include a new brighter, bigger and easier to read display, HART (Fluke 754 only) connectability through the mA terminals, improved test lead set, Li-ion battery, improved RTD accuracy and more. Added bonus, the new 750 series DPCs include the innovative new C799 Field Softcase.


      The Fluke 753 Documenting Process Calibrator automates calibration procedures and captures your data. Use the PC interface for downloading procedures, lists, and instructions to the 753 and for uploading data for printing, archiving and analysis.


Features of the Fluke 753 and 754 Process Calibrators:

    • Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments

    Source/simulate volts, mA, thermocouples , RTDs, frequency, ohms, and pressure to calibrate transmitters

    Power transmitters during test using loop supply with simultaneous mA measurement

    Measure/source pressure using any of 29 Fluke pressure modules

    Measure and source simultaneously with one compact, rugged, reliable tool

    Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results

    Advanced features like autostep, custom units, user entered values during test, one-point and two-point switch testing,
      square root DP flow testing, programmable measurement delay and more

    Control the temperature of selected Hart Scientific Dry Blocks

    Handle fast pulsed RTD transmitters and PLCs in RTD source mode with 1 ms response time

    English, French, German, Italian, and Spanish languages

    Three-year warranty

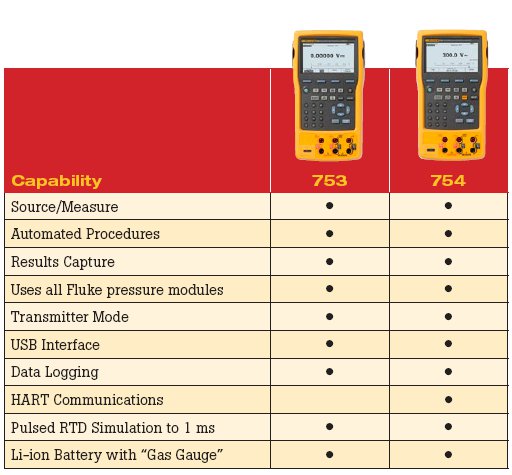

Fluke 754 Documenting Process Calibrator is more advanced than the Fluke 753 by adding:

     The 754 includes integrated HART communication capability. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation.


Pressure Modules - Covers virtually any pressure application including gauge, differential, dual (compound), absolute, and vacuum.

  • Display pressure readings in any of 10 different pressure units you specify in the calibrator setup.
  • Rugged urethane molded cases protect the modules from rough handling and harsh conditions.
  • Features internal temperature compensation from 0º to 50º C for full accuracy performance.
  • Includes NIST-traceable calibration certificate.
  • Modules can be calibrated locally, helping to control costs.

A family of 29 optional pressure modules provides pressure calibration and measurement capabilities. Twenty-eight modules are available, with basic accuracy specs to 0.05%. Ranges start at 0 -1 in H20 (0 - .25kPa) and go to 0 -10,000 PSIG (0 — 70,000 kPa). Additional information about pressure modules is available.

Automated Procedures - Allow you to quickly set up powerful, automated calibration procedures for linear transmitters, DP flow transmitters, and one- and two-point limit switches. Simply select the appropriate measure and/or source functions and fill out the procedure template. The 750 Series does the rest. It quickly performs the test, calculates the errors, and displays the final results, highlighting out of tolerance points.

Custom Units - Enable you to map one unit to another, such as mV to ºC or ºF. Allows you to use the Fluke 750 Series with millivolt output accessories such as the Fluke 80T-IR Temperature Probe, and to document tests using non-supported units such as parts per million or revolutions per minute.

User-entered Values - Enables technicians to record calibration results that were sourced and/or measured by other devices such as panel meters or readout-only devices.

Limit Switch Calibration - Procedures perform fast, automated calibration of one and two-point limit switches for voltage, current, temperature, and pressure.

Differential Pressure Flow Instrument Calibration - Routines use a square root function to directly calibrate DP flow instruments.

Additional Features - Multifunctional - Calibrate temperature, pressure, voltage, current, resistance, and frequency. Since it both measures and sources, you can troubleshoot and calibrate all with one rugged tool.

Powerful, yet easy to use - The easy-to-follow menu-driven display guides you through any task. Get up to speed in minutes, not days. Programmable calibration routines enable you to create and run automated as-found/as-left procedures to ensure fast, consistent, calibrations.

Records and documents results - To support your ISO-9000 or regulatory standards the Fluke 753 captures your calibration results, eliminating the need to juggle a pen and pad in the field. The USB interface lets you transfer the results to a PC, thus saving the time of having to manually transcribe them when you return to the shop.

Truly hand-held - Small enough to fit easily into a tool bag and to use in tight spaces. Runs an entire shift on a rechargeable Li-ion battery pack.

Rugged and reliable - Count on Fluke's rugged design to deliver top accuracy and reliability in harsh environments. Overmolded urethane case stands up to rough handling in industrial environments.

Bright white display - Lets you read your results in any kind of light. Backlight has three (3) settings.

Soft keys - Provide one-touch access to enhanced functions such as task lists, automated procedures, scaling, min/max, stepping and ramping, and review memory.

Three operating modes - Measure, Source, or simultaneous Measure/Source, - enable technicians to troubleshoot, calibrate, or maintain instrumentation with just one tool.

Multi-lingual interface - Displays instructions in English, French, German, Spanish, and Italian.

Built-in algebraic calculator - With four functions-plus square root-stores, recalls, and performs calculations required for setting up instruments or evaluating data in the field. Use it to set the source function to a calculated value. There's no need to carry a pencil and paper or a separate calculator.

Programmable measurement delay - Inside automated procedures permits calibrating instruments that respond slowly

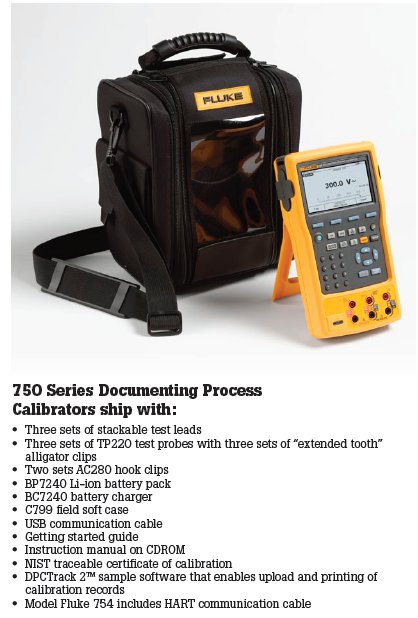

FLUKE-753 Documenting Process Calibrator, FLUKE-754 Documenting Process Calibrator-HART include:

 Specifications - Fluke 753 & Fluke 754 Process Calibrators

Measurement Accuracy
Voltage DC
 1 Year  2 Years
100.000 mV        0.02%+0.005% mV  0.03%+0.005 mV
3.00000 V  0.02%+0.00005% V  0.03%+0.00005 V
30.000 V  0.02%+0.0005% V  0.03%+0.0005 V
300.00 V  0.05%+0.05% V  0.07%+0.05 V
Voltage AC
Range
40 to 500 Hz
 Resolution  1 Year 2 Years
3.000 V  0.001 V  0.5%+0.002 V  1.0%+0.004 V
30.00 V  0.01 V  0.5%+0.02 V  1.0%+0.04 V
300.0 V  0.1 V  0.5%+0.2 V  1.0%+0.2 V
Current DC
   1 Year  2 Years
30.000 mA          0.01% + 5 uA   0.015%+7 uA
110.00 mA  0.01% + 20 uA  0.015%+30 uA
Resistance
   1 Year  2 Years
10.000 O
 0.05% + 50 mO  0.07%+70 mO
100.00 O  0.05% + 50 mO  0.07%+70 mO
1.0000 kO   0.05% + 500 mO  0.07%+0.5 O
10.000 kO  0.1% + 10 O  0.15%+15 O
Frequency
   Resolution  Accuracy (2 Years)
1.00 to 110.00 Hz  0.01 Hz  0.05 Hz
110.1 to 1100.0 Hz  0.1 Hz  0.5 Hz
1.101 to 11.000 kHz   0.001 kHz  0.005 kHz
11.01 to 50.00 kHz  0.01 kHz  0.05 kHz



Source Accuracy
Voltage DC
   1 Year  2 Years
100.000 mV
 0.01%+0.005% mV  0.015%+0.005% mV
1.00000 V  0.01%+0.00005% V  0.015%+0.0005% V
15.0000 V  0.01%+0.0005% V  0.015%+0.0005% V
Current DC
   1 Year 2 Years
22.000 mA (Source)  0.01%+ 0.003 mA  0.02%+ 0.003 mA
Current Sink (Simulate)  0.02% + 0.007 mA  0.04% + 0.007 mA
Resistance
   1 Year  2 Years
10.000 O
 0.01% + 10 mO  0.015% + 15 mO
100.00 O  0.01% + 20 mO  0.015% + 30 mO
1.0000 kO  0.02% + 0.2 O  0.03% + 0.3 O
10.000 kO  0.02% + 3 O  0.03% + 5 O
Frequency
   2 Years
0.1 to 10.99 Hz  0.01 Hz
0.01 to 10.99 Hz  0.01 Hz
11.00 to 109.99 Hz  0.1 Hz
110.0 to 1099.9 Hz  0.1 Hz
1.100 to 21.999 kHz  0.002 kHz
22.000 to 50.000 kHz
 0.005 kHz

Technical Data
Data Log Functions
Measure functions:  Voltage, current, resistance, frequency, temperature, pressure
Reading rate:  1, 2, 5, 10, 20, 30, or 60 readings/minute
Maximum record length:  8000 readings (7980 for 30 or 60 readings/minute)
Ramp Functions
Source functions:  Voltage, current, resistance, frequency, temperature
Rate:  4 steps/second
Trip detect:  Continuity or voltage (continuity detection not available when sourcing current)
Loop Power Function
Voltage:  Selectable, 26 V
Accuracy:  10%, 18 V minimum at 22 mA
Maximum current:  25 mA, short circuit protected
Maximum input voltage:  50 V DC
Step Functions
Source Functions  Voltage, current, resistance, frequency, temperature
Manual Step  Selectable step, change with arrow buttons
Autostep  Fully programmable for function, start delay, stepvalue, time per step, repeat



Environmental Specifications
Operating Temperature
 -10 °C to +50 °C
Storage Temperature
 -20 °C to +60 °C
Dust/water resistance
 Meets IP52, IEC 529
Operating Altitude
 3000 m above mean sea level (9842 ft)



Safety Specifications
Agency Approvals
 CAN/CSA C22.2 No 1010.1-92, ASNI/ISA S82.01-1994, UL3111, and EN610-1:1993



Mechanical & General Specifications
Size
 136 x 245 x 63 mm (5.4“ x 9.6 x 2.5)
Weight
 1.2 kg (2.7 lb)
Batteries
Internal Battery Pack Li-ion:  7.2V, 4400mAh, 30 Wh
Battery Life
 >8 hours typical
Battery Replacement
 Via snap-shut door without opening calibrator; no tools required
Side port connections
 Pressure module connector
 USB Connector to interface to your PC
   Digital instrument (HART) connector
 Connection for optional battery charger/eliminator
Data storage capacity
 1 week of calibration procedures results
90 day specifications
 The standard specification interval for the 750 Series are 1 and 2 years.
 Typical 90 day measurement and source accuracy can be estimated by
 dividing the one year "% of reading" or "%of output" specifications by 2.
 Floor specifications, expressed as "% of full scale" or
 "counts" or "ohms" remain constant.
