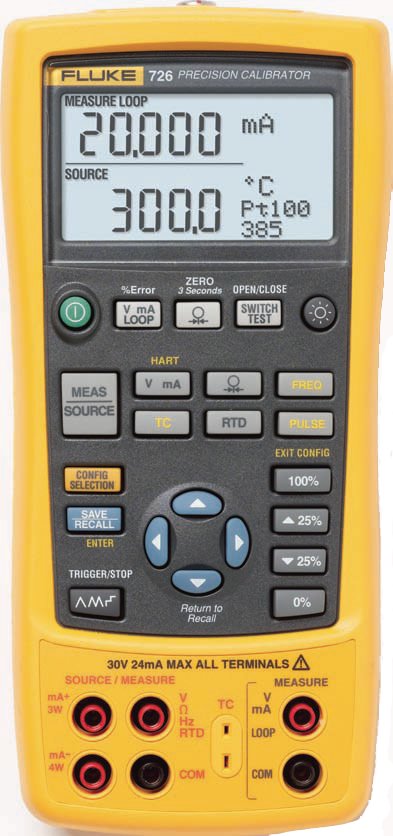

Fluke 726 Precision Multifunction Process Calibrator

<< Previous in mA Loop/DC Calibrators Next in mA Loop/DC Calibrators >>
OUR PRICE: $3,999.99
Item Number: FLUKE-726
Manufacturer: FLUKE
Manufacturer Part No: FLUKE-726

Product Options

Calibration Selection:
Fluke 726 Precision Multifunction Process Calibrator
Fluke 726 Precision Multifunction Process Calibrator



The Fluke 726 Precision Multifunction Process Calibrator is designed specifically for the Process industry with broad workload coverage, calibration power and unsurpassed accuracy in mind. The 726 measures and sources almost all process parameters and can calibrate almost anything. The 726 will also interpret results without the help of a calculator and store measurement data for later analysis.

Fluke 726 Features:
  • More precise measurement and calibration source performance, accuracies of 0.01%.
  • Transmitter error% calculation, interpret calibration results without a calculator
  • Memory storage for up to 8 calibration results, return stored calibration data from the field for later analysis
  • Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing
  • HART mode inserts 250 ohm resistor in mA measure and source for compatibility with HART instrumentation
  • Integrated pressure switch test allows you to capture the set, reset and deadband of a switch
  • Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement.
  • New voltage input protection design for improved reliability
  • Two seperate channels; measure, source and view process signals simultaneously
  • Measure volts, mA, RTDs, thermocouples, frequency, and pressure to calibrate transmitters
  • Source/simulate volts, mA, thermocouples, RTDs, frequency and pressure to calibrate transmitters
  • Measure or *source pressure using any of the 29 Fluke 700Pxx Pressure Modules
  • Source mA with simultaneous pressure measurement to conduct valve and I/P tests
  • Perform fast linearity tests with auto step and auto ramp features
  • Power transmitters during test using 24 V loop supply and simultaneous mA measurement
  • Store frequently-used setups for later use
  • Three-year warranty
    *Pressure pump required

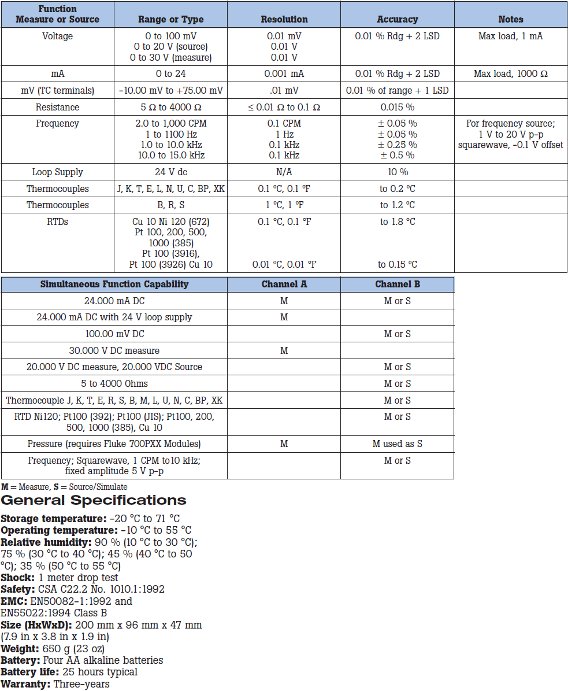

Fluke 726 Specifications:



Function Measure or Source

Range or Type

Resolution

Accuracy

Voltage

0 to 100 mV 0 to 20 V (source)
0 to 30 V (measure)

0.01 mV 0.01 V 0.01 V

0.01 % Rdg + 2 LSD

mA

0 to 24

0.001 mA

0.01 % Rdg + 2 LSD

mV (TC terminals)

­10.00 mV to +75.00 mV

.01 mV

0.01 % of range + 1 LSD

Resistance

5 Ω to 4000  Ohm

≤.01 Ω to

0.1  Ohm

0.015 %

Frequency

2.0 to 1,000 CPM
1 to 1100 Hz
1.0 to 10.0 kHz
10.0 to 15.0 kHz

0.1 CPM 1 Hz 0.1 kHz 0.1 kHz

+/- 0.05 % +/- 0.05 % +/- 0.25 % +/- 0.5 %

Loop Supply

24 V DC

N/A

10 %

Thermocouples

J, K, T, E, L, N, U

0.1 ºC, 0.1 ºF

to 0.2 ºC

Thermocouples

B, R, S

1 ºC, 1 ºF

to 1.2 ºC

RTDs

Cu10, Ni120 (672) Pt 100, 200, 500, 1000 (385) Pt 100 (3916), Pt 100 (3926)

0.01 ºC

0.01 ºF

to 0.15 ºC



Simultaneous Function Capability

Channel A

Channel B

24.000 mA DC

M

M or S

24.000 mA DC with 24 V loop supply

M



100.00 mV DC



M or S

30.000 V DC measure

M



20.000 V DC measure, 10.000 VDC Source



M or S

15 to 3200 Ohms



M or S

Thermocouple J, K, T, E, R, S, B, M, L, U, N



M or S

RTD Ni120; Pt100 (392); Pt100 (JIS); Pt100, 200, 500, 1000 (385)



M or S

Pressure (requires Fluke 700PXX Modules)

M

M used as S

Frequency; Squarewave, 1 CPM to10 kHz; fixed amplitude 5 V p­p



M or S

M = Measure; S = Source

Includes: TL75 Test Leads, AC72 Test Clips, one pair of stackable test leads, product overview
manual (print) and user’s manual (CD­ROM) in 14 languages.
