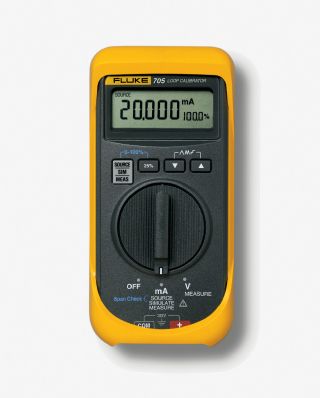

Fluke 705 Loop Calibrator

<< Previous in mA Loop/DC Calibrators Next in mA Loop/DC Calibrators >>
OUR PRICE: $1,061.99
Item Number: FLUKE-705
Manufacturer: FLUKE
Manufacturer Part No: FLUKE-705

Product Options

* denotes required field

Calibration Options*
Fluke 705 Loop Calibrator

Fluke 705 Loop Calibrator

     For a powerful loop calibrator at a very affordable Price, choose the
new Fluke 705 Loop Calibrator. This feature-rich solution to loop calibration,
Maintenance and repair offers:

Features:

  • Simultaneous mA and % readout for quick, easy interpretation of readings
  • mA accuracy of 0.02%
  • Push button 25% steps for fast, easy linearity checks
  • Save time over traditional knob type controls
  • "Span Check" for fast confirmation of zero and span
  • Selectable slow ramp, fast ramp, and step to provide smooth outputs for valve slewing and loop functional tests
  • 24 volt internal loop supply, so you can power and read a transmitter at the same time without carrying a DMM
  • Single 9V battery that is easily changed
  • 0 - 20 mA or 4 - 20 mA default start up modes
Specifications:
Summary Specifications
(18°C to 28°C for one year)
Voltage Measure Range: 0 to 28V
Resolution: 0.001V
Accuracy: .025% Rdg + 1 LSD
mA Measure Range: 0 to 24
Resolution: 0.001 mA
Accuracy: .02% Rdg + 2 LSD
MA source Range: 0 to 24 mA
Resolution: 0.001 mA
Accuracy: .02% Rdg + 2 LSD
Notes: Max load, 1000 Ohms, Max applied
 voltage for simulation, 30V
Loop Supply Range: 24 Vdc
Accuracy: 10%
Temperature coefficient -10 C to 18 C, 28 C to 55 C,
+/-.005% of range per C



General Specifications
Maximum voltage 30V
Storage temperature -40 C to 60 C
Operating temperature -10 C to 55 C
Relative humidity 0 to 90% (0 C to 35 C);
0 to 70% (35 C to 55 C)
Shock and vibration per MIL-T-28800 for a Class 2 Instrument
Safety CSA C22.2 No. 1010.1:1992
EMC EN50082-1:1992 and EN55022:1994 Class B
Size/weight 152 mm L x 70 mm W x 41 mm D
(6.0 in L x 2.8 in. W x 1.6 in D) 340g (12oz)
Battery One 9V battery
Warranty Three years
