Fluke 700P02 1 PSIG Differential Pressure Module

<< Previous in Fluke & Hart Scientific Next in Fluke & Hart Scientific >>
Fluke 700P Pressure Module
OUR PRICE: Discontinued
Item Number: FLUKE-700P02
Manufacturer: FLUKE
Manufacturer Part No: FLUKE-700P02

Fluke 700P02 Differential Pressure Module



Features:

  • Display pressure readings in any of 10 different pressure units you specify in the calibrator setup
  • Rugged urethane molded case protects the module from rough handling and harsh conditions
  • Features internal temperature compensation from 0 C to 50 C for full-accuracy performance
  • Includes NIST-traceable calibration certificate
  • Module can be calibrated locally using the Fluke 700PCK Pressure Calibration Kit, a PC, and a precision pressure source
  • One year warranty


Specifications:

Range 1 PSIG / 6900 Pa
Resolution 0.0001 / 0.7
Reference Uncertainty (23 +/- 3 C) 0.1500%
Total1 Uncertainty 1 year 0.300
High Side Media2 Dry
Low Side Media2 Dry

1 Total uncertainty, one year for temperature range 0 C + 50 C. Total uncertainty,
1.0% of full span for temperature range - 10 C to 0 C. Compensated temperature range is 15 to 35 C.
2 "Dry" indicates dry air or non-corrosive gas as compatible media. "316 SS" indicates media compatible
with Type 316 Stainless Steel. "C276" indicates media compatible with Hastelloy C276.


Use With:


Fluke 744 Documenting Process Calibrator with HART
Fluke 741, 743, 741B, and 743B Documenting Process Calibrators
Fluke 725 Multifunction Calibrator
Fluke 716, 717, and 718 Pressure Calibrators
Fluke 5520A Calibrator
Martel MC-1000, MC-1200, M2000, M2001 with Special Cable Interface (Part Number: 700MA)

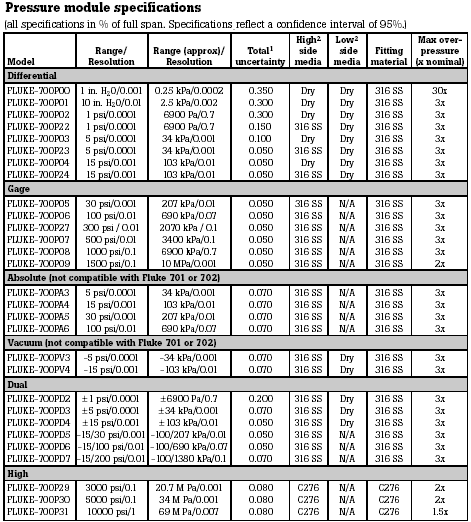

Other Models Available:


Order Modules By Individual Part Number Located in the First Column of the Above Table, i.e. 700P01
