Fluke 700P01Ex 10"WC Differential Intrinsically Safe Pressure Module

<< Previous in Fluke & Hart Scientific Next in Fluke & Hart Scientific >>
OUR PRICE: Discontinued
Item Number: FLUKE-700P01EX
Manufacturer: FLUKE
Manufacturer Part No: FLUKE-700P01EX
Fluke 700PEx Pressure Module

Fluke 700P01Ex Intrinsically Safe Differential Pressure Module




Features:

   Display pressure readings in any of 10 different
     pressure units you specify in the calibrator setup
   • Rugged urethane molded case protects the module
     from rough handling and harsh conditions
   • Features internal temperature compensation from
     0 to 50 Deg C for full-accuracy performance
   • Includes NIST-traceable calibration certificate
   • Module can be calibrated locally using the Fluke 700PCK
     Pressure Calibration Kit, a PC, and a precision pressure source
   • One year warranty
   • Intrinsically Safe to ATEX Standards, FM, CSA Class 1, Div 1, Group A-D

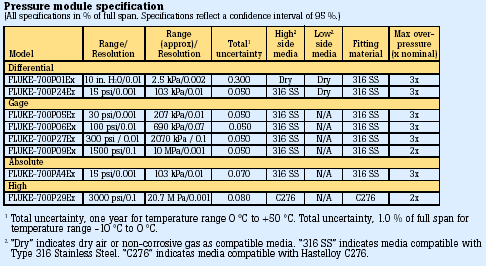

Specifications:

Range 10.000 in. H2O / 2.5 kPa
Resolution 0.01 / 0.002
Uncertainty (23 +/- 3 Deg C) 0.200%
Total1 Uncertainty 1 year 0.300
High Side Media2 Dry
Low Side Media2 Dry
 Safety Rating I.S. Class I Div 1 Groups A-D
T4 AEx ia IIC T4
Ta = 0C ... +50C


1 Total uncertainty, one year for temperature range 0 to + 50 DegC. Total uncertainty,
1.0% of full span for temperature range - 10°C to 0°C. Compensated temperature range is 15 to 35 Deg C.
2 "Dry" indicates dry air or non-corrosive gas as compatible media. "316 SS" indicates media compatible
with Type 316 Stainless Steel. "C276" indicates media compatible with Hastelloy C276.


Use With:


Fluke 744 Documenting Process Calibrator with HART
Fluke 741, 743, 741B, and 743B Documenting Process Calibrators
Fluke 725 Multifunction Calibrator
Fluke 716, 717, and 718 or 718Ex Pressure Calibrators
Fluke 5520A Calibrator
Martel MC-1000, MC-1200, M2000, M2001 with Special Cable Interface (Part Number: 700MA)

Other Models Available:



Order Modules By Individual Part Number Located in the First Column of the Above Table, i.e. 700P01Ex
