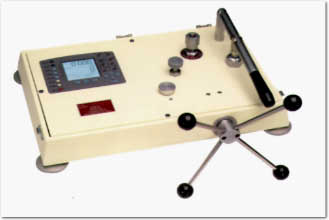

Druck C Series Digital Pressure Calibrator
|
|
Item Number: C Series
Manufacturer: Druck (GE)
Manufacturer Part No: C Series
|
Druck C Series Digital
Pressure Calibrator
The DRUCK C Series is a microprocessor based pressure calibrator
with built-in pressure generation. Model are available for Vacuum, Pneumatic and
Hydraulic operation to 10,000 psig. The entire self contained instrument includes
fine pressure controls, device energizing, output measurement and data storage
capabilities. A large dual line display shows status during calibrations and can be
stored for later documentation, The mA step and ramp outputs makes calibrating
pressure transmitters effortless. Data can be downloaded thorough the RS-232
Port and placed in to popular spreadsheet programs using Windows Hyper-Terminal.
Features:
• Ranges from Vacuum to 10,000 PSI
• Accuracy Better Than 0.025% FS
• Auto Zero Correction
• Built In Pressure Generation with Prime Pump
• Data Storage with RS-232 Interface
• Measures Temperature, mA and DC Volts
• Leak & Pressure Switch Tests Built-in
• Large LCD Dual Line Display with Status
• Operates in 7 Languages
• Switch Between 25 Units,1 User Defined
• Self Contained Carry Case with Removable Lid
• Includes NIST Calibration Certificate
Technical Specifications:
| Accuracy: |
±0.025% Full Scale |
| Temperature Effect: |
±0.002% of Reading/°F (15 to 150°F)
Includes Linearity, Hysteresis & Repeatability |
| Ranges: |
From -14.7 to 10,000 PSI |
| Display: |
2.36” Square Display with Backlight |
| Readout: |
±99999 Capability, 2 Readings/Sec |
| Pneumatic Source: |
Integral 0-300 PSI Hand Pump |
| Vacuum Source: |
0 to -14.7 PSI Hand Pump Option |
| Hydraulic Source: |
Internal, 0-10,000 PSIG Ram Screw |
| Measure: |
Pressure, mA, V DC, Switch State, Temp
VDC: ±50 V at ±0.05% Rdg + ±0.004% FS
mA DC: ±55mA at ±0.05% Rdg + ±0.004% FS
Temp: 15 to 105°F at ±2 F
Switch: Open or Closed, 5 mA Whetting |
| Source: |
Pressure, mA Step/Ramp, Loop Power (10-24 VDC)
0-24 mA; at ±0.05% Rdg + ±0.01% FS |
| Overpressure: |
2X Full Scale (500 PSI on Pneumatic Models) |
| Pressure Units: |
25 Units, 1 User Defined |
| Data Log: |
10,000 Readings, 20 Screen Shots |
| Leak Test: |
Built in Function |
| Process Functions: |
Tare, MAX/MIN, Filter, Flow, % Span |
| Languages: |
English, French, German, Spanish, Italian, Portuguese |
| Weight: |
26.4 Lbs. |
| Size: |
18.5” L x 12.6” D x 7.9” H |
| Connections: |
1/4”, 1/8”, 3/8”, 1/2” NPT-Female |
| Power: |
Rechargeable NiCAD Battery Pack |
| Temp Limits: |
15 to 120°F Operating |
| Humidity Limits: |
0-90% Non-Condensing |
|
|
|
