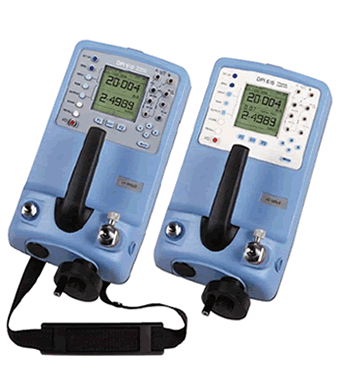

Druck DPI 610LP Portable Low Pressure Calibrator
|
Item Number: DPI 610LP
Manufacturer: Druck (GE)
Manufacturer Part No: DPI 610LP
|
|
Druck DPI 610LP Portable Low Pressure Calibrator
The Druck DPI 610/615 LP series incorporates a precision low pressure sensor and pneumatic generation, to provide a fully self contained, portable low pressure calibrator. The key to the simple operation of the DPI 610/615 LP is the task menu. Specific operating modes such as P-I task sets the calibrator to source pressure and measure mA, and the P-Display task allows indicator readings to be manually entered and recorded, for example, when checking devices such as Magnehelic gauges. At low differential pressures, even connecting the device under test can induce significant pressure. To compensate for this, an auto facility is provided that uses an internal solenoid valve to equalize the differential pressure prior to zero correction. Setting the Standard for Low Pressure Calibrators The DPI 610 has data storage and RS232 interface. Data can be transferred directly from the 610 to a PC for analysis, certificate printing and archiving. The DPI 615 simplifies field use by calculating the device under test error and the pass/fail status, and integrates with calibration management software systems, such as Intecal. The DPI 615 also has data storage and RS232 interface and has two-way communication for downloading procedures and uploading results..
Features:
• High Accuracy, 0.025% Full Scale
• Ranges from -14.7 to 10,000 PSI
• PSI for Gauge, Asolute of DP Measurement
• Internal Pneumatic Vacuum/Pressure Source
• Pneumatic Generation -22" Hg to 300 PSI
• Internal Hydraulic Source, 0-6000 PSI
• Measure: mA, V, Switch State, Temperature
• Source: Pressure, mA Step, mA Ramp, Actual mA
• Powers Transmitters from 10 to 24 VDC
• Stores up to 10,000 Readings
• Second Pressure Port for Remote Sensors
• Dual Line LCD: Input & Output on One Display
• Linkpak Software Documents Calibrations
• Stores up to 20 Screen Displays
• Operates in 6 Languages, 25 Pressure Scales
• Measure mA, Volts, Pressure, Switch State
• Measure Ambient Temperture
• Source Pressure, mA, Transmitter Power
• Test Pressure Switches
• Perform Leak Tests
• Pressure Transmitter Calibration
• mA Loop Testing & Troubleshooting
|
|
|
