BetaGauge PI Digital
Pressure Test Gauge
The BetaGauge P. I. Digital Pressure Test
Gauge takes the concept of an analog Test
Gauge, and brings it to a new level, as only
Beta Calibrators can do. The BetaGauge P. I.
combines the accuracy of digital technology
with the simplicity of an analog gauge, and
achieves performance, ease-of-use, and a
feature set unmatched in the pressure measurement
world. Setup of the BetaGauge P. I. is fast and
straightforward, through a menu-driven display,
with minimal text, and intuitive functions, that is
simple enough to allow the gauge to be used
anywhere in the world, without the need for
multilingual displays. And the availability of
optional sanitary seals that meet 3A standards
per specification 37-01 allow the gauge to be
used in virtually any application. Ease-of-use,
performance, and features set the BetaGauge P. I.
Digital Pressure Test Gauge apart, just as you’ve
come to expect from Beta Calibrators!
Features:
• Very high accuracy compared to analog test gauges
• +/-0.05% F. S.; temperature compensated
• Temperature compensated accuracy over 0 to 50 C
• Eight (8) standard pressure ranges
• Displays in 18 standard or fully custom engineering units
• Displays ambient temperature in C or F
• Large, back-lit, 5-1/2 digit display with 0.65" digits
• 20 segment bar graph
• Rugged stainless steel case meets NEMA 4/IP65
• Password-protected 'through the keypad' calibration
• MIN/MAX recall
• Adjustable TARE zeros large system offsets
• User-configurable sample rate maximizes performance and battery life
• User-configurable damping provides stable readings
• Auto Shut-off for extended battery life
• Low battery indicator
• CSA intrinsically safe, Class 1, Div. 1 approvals pending
• CE approved
• Available with optional sanitary seal
• Available with optional 24 V external power input
• Available with optional rubber boot
• Also available as a kit (with Hand pump)
Technical Specifications:
|
|
BetaGauge PI |
|
Pressure Range |
15 psi/1 BAR, 30 psi/2 BAR, 100 psi/7 BAR,
500 psi/30 BAR, 1,000 psi/70 BAR,
3,000 psi/200 BAR, 5,000 psi/300 BAR,
10,000 psi/700 BAR |
|
Accuracy |
+/-0.05% FS Positive Pressure
+/-0.25% FS Vacuum/500 psi and below
Temp Comp 0 to 50 C |
|
Standard Units |
PSI, Bar, Kg/cm2, inH2O (4 C, 20 C, 60 F),
ft H2O (4 C, 20 C or 60 F), cmH2O (4 C
20C), mH2O (4 C and 20 C), Kpa,
mBAR, inHg, mmHg, TORR |
|
Media Compatibility |
Liquids and gases compatible
with 316 stainless steel |
|
Operating Temperature |
-10 °C to +55 C |
|
Storage |
-20 C to +70 C (-4 F to +158 F) |
|
Dimensions |
4.375" x 5.0" x 1.50" |
|
Input Port |
1/4" Male NPT Bottom (Rear Option) |
|
Display |
5 Digits, 0.65" (16.53 mm) height
Bar Graph – 0 to 100% in 20 segments |
|
Power |
Three (3), Size AA |
|
Battery Life |
1,500 hours without backlight;
2,000 hours at slow sample rate;
Low Battery Indicator |
Sanitary Seal Option
The BetaGauge P. I. is available with diaphragm
seals made of 316 stainless steel, with quick-couples
that meet 3A Standards per specification
37-01 for use in sanitary piping applications in the
food, beverage, pharmaceutical, and other
industries requiring extreme levels of purity. The
seal elements are designed to mount on tees or
welding ferrules. Their design allows for fast,
efficient installation and removal for flushing or
changing process media, line cleanout, and
equipment washdown.
External Power Input Option
An optional external 24 VDC power input is available
for applications where the BetaGauge P. I. will be
permanently incorporated into a process line.
Rubber Boot Option
A protective rubber boot is available to help protect
the BetaGauge P. I. from damage when dropped.
|

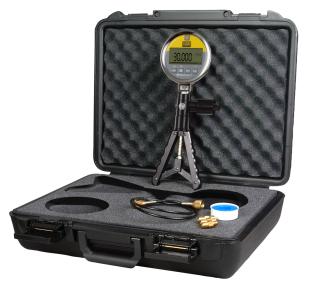

Pressure Calibration Kit Option
The BetaGauge P. I. is available in a self-contained calibration kit, including a hand pressure pump, and associated fittings.
Available In:
- 500 PSIG (Pneumatic)
- 3000 PSIG (Hydraulic) |
 |
|
