Ametek Jofra APC Advanced Pressure Calibrator
Ametek Jofra APC
Advanced Pressure Calibrator
The Ametek APC Calibrator in Action !
The JOFRA APC calibrators are the latest in the new generation
of AMETEK handheld pressure calibrators. This series was designed
to meet high accuracy pressure calibration applications and to make
your tasks easier. The APC offers features such as dual information
display, 17 different pressure units, transmitter supply, scalable mA
input for % error calculation, serial communications, and external
pressure module capability. The accuracy of the APC calibrators is
deadweight caliber throughout the range and is temperature
compensated for operation in controlled or in process applications.
This is a truly superior pressure calibrator.
The JOFRA APM series of pressure modules extends the application
base for the APC calibrators by allowing for calibrations in ranges other
than those of the indicator; and at a lower cost than purchasing another
APC. The APM modules are also compatible with several other
JOFRA calibrators. You can perform a calibration locally without
returning the APC unit to the manufacturer. All you need is an accurate
pressure reference. If you do require factory calibration, the pump and
indicator are independent and only the indicator needs to be returned.
The JOFRA APC is an extremely accurate handheld pressure
calibrator that offers several user-friendly features and superior
performance. The APC is available as an indicator or in one of 6 test-ready
systems that are complete and equipped to meet your pressure calibration
needs, where accuracy, flexibility, and quality cannot be compromised.
Large digits display the pressure, icons show current status and mode,
and smaller digits show device-under-test conditions. Save time and effort in
calculating the error between the APC and the device-under-test by entering
the pressure range corresponding to 4-20 mA. This gives immediate read-out
of the error in %. You can also just read mA or % of 4-20 mA in the display.
Keep the high accuracy: ZERO the instrument with the single button zeroing
before every test. Store peak values (upper and lower). Read the highest and
lowest presure value since your last reset of the APC. Shutoff feature that
extends battery life.

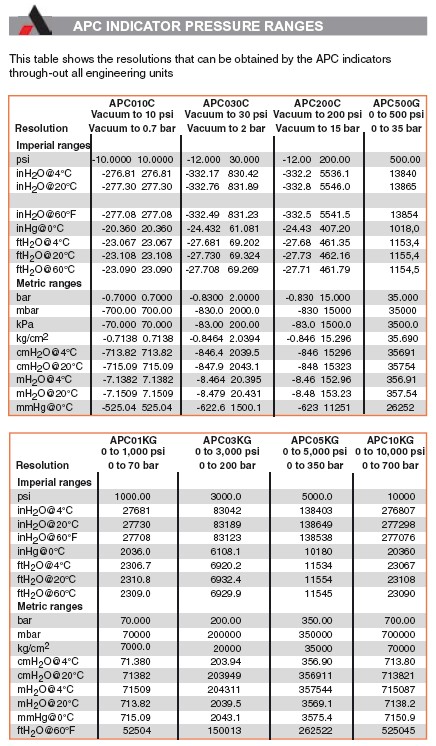

Available in 8 different pressure ranges from -12 psi (-0.850 bar) vacuum to
10,000 psi (700 bar). Instant conversion of pressure readings to 17 different
units of measure, e.g. bar, kPa, mPa, Atm, kgf/cm2, cmH2O, mmHg, psi, inH2O,
inHg, ftH2O.
Perform semi-automatic pressure switch tests. The APC records the "close"
and "open" pressure values and calculates the hysteresis (deadband). You can
change the pressure and the APC does the rest. |
FEATURES:
• Available in Ranges from Vacuum to 10,000
• High accuracy +/-0.04% of reading +/-0.01% of full scale with
no low range degradation in accuracy.
• Fully Temperature Compensated
• Ideal for on-site use
• Complete ready-to-use calibration systems
• More than 60 External Pressure Modules with accuracy up to 0.01%
• Transmitter scaling, % Error Calculations with User Defined Scaling
• Easy pressure switch test, Records open/close pressures
• Record min and max readings
• Easy field re-calibration of the unit via serial port
 |
Select from over 60 remote pressure modules for your APC calibrator. See our complete selection by Clicking Here. |
Standard Delivery:
APC calibrator with integral pressure sensor:
• Traceable calibration certificate (NIST)
• 9 V Battery
• NPT to BSP female
• Test leads; red and black
• Soft carrying case, Shoulder Strap
• User manual
|
APC System A
0 to 10 psi / 0.7 bar
0 to 30 psi / 2 bar
0 to 200 psi / 15 bar
(Pump has no Vacuum Capability)
|
The system A calibration kit includes the JOFRA APC calibrator together with one of the following pneumatic hand pumps: T-730 or T-740, depending on the chosen pressure range. System A is an easy-to-use single hand operated calibration system. No need for a flat surface to operate the system - just hold it in your hand. The System A comes in an aluminum carrying case with cutouts for fittings, hose, and the complete assembled calibration unit - no time is required to assemble the unit every time you need it. The calibrator (indicator) can at any time be used separately for other pressure test tasks. A special quick connector between the pump and the indicator makes it possible to seperate the system in seconds and to swivel the indicator for easy viewing. |
|
APC System B
-12 to 200 psig/15 bar
0 to 500 psig/35 bar
|
The system B Calibration kit includes the dual function pneumatic hand pump. With this pump you can calibrate both vacuum and pressure applications. It takes just a few seconds to switch between vacuum and pressure, just push one button (valve) on the T-910 handpump. The System B comes in an aluminum carrying case with cutouts for fi ttings, hose and the complete assembled calibration unit - no time required to assemble the unit every time. The indicator and the pump are fitted with a special quick connector that makes it possible to separate the system in seconds without any tool. This quick connector also makes it possible to use the assembled system with the indicator twisted to any angle. |
|
APC System C
0 to 500 psi / 35 bar
0 to 1,000 psi / 70 bar
0 to 3,000 psi / 200 bar
0 to 5,000 psi / 350 bar |
The system C Calibration kit consists of an APC calibrator together with a hydraulic, high pressure hand pump T-620 or T-620H, which features an Oil reservoir to prime the system. System C is an easy-to-use single hand operated calibration system. No need for a flat surface (table) to operate the system. The system includes release valve and vernier valve for fine adjustment to enable safe and simple operation of the pump. The system C comes in an aluminum carrying case with cutouts for fittings, hose, tube and the complete assembled calibration unit - no time adder to assemble the unit every time. Easy and fast connection between pump and calibrator makes it easy to use the pressure indicator separately for other pres-sure test tasks. |
|
APC System D
0 to 500 psi / 35 bar
0 to 1,000 psi / 70 bar
0 to 3,000 psi / 200 bar
0 to 5,000 psi / 350 bar
|
The system D calibration kit consists of APC calibrator together with a rugged, hydraulic, high pressure screw pump. System D is an easy-to-use calibration system. Place the pump on a flat surface and turn the handle to generate pressure. You can adjust the indicator to fit the best viewing angle. The system includes a manifold for connection of the test device, a fine adjustment vernier valve (optional) and a reservoir for extra oil or water (optional). The system D comes in an aluminum carrying case with cutouts for fittings, tube, and the complete assembled calibration unit - no time adder to assemble the unit every time. Easy and fast connection between pump and calibrator makes it easy to use the pressure calibrator separately for other pressure test tasks. |
|
APC System E
0 to 1,000 psi / 70 bar
0 to 3,000 psi / 200 bar
0 to 5,000 psi / 350 bar
0 to 10,000 psi / 700 bar |
The system E calibration kit consists of an APC calibrator together with a rugged, hydraulic, high pressure pump. System E is an easy-to-use calibration system. The hydraulic pump makes it very easy to prime the system. You can adjust the indicator to fit the best viewing angle. The system includes a manifold for connection of two test devices and the fine adjustment vernier valve is standard. The system E comes in an aluminum carrying case with cutouts for fittings, tube and the complete assembled calibration unit - no time adder to assemble the unit every time. Easy and fast connection between pump and calibrator makes it easy to use the pressure calibrator separately for other pressure test tasks.
|
|
APC System F
0 to 500 psi / 35 bar
0 to 1,000 psi / 70 bar
0 to 3,000 psi / 200 bar
0 to 5,000 psi / 350 bar
0 to 10,000 psi / 700 bar
|
The System F calibration kit is an easy-to-use calibration system. The hydraulic pump makes it very easy to prime the system. The pump contains 1.23 l / 75 in3 of liquid. The system includes a manifold for connection of two test devices and the fine adjustment vernier valve is standard. The system F comes in an aluminum carrying case with cutouts for fittings, tube and the complete assembled calibration unit - no time adder to assemble the unit every time. Easy and fast connection between pump and calibrator makes it easy to use the pressure calibrator separately for other pressure test tasks. |

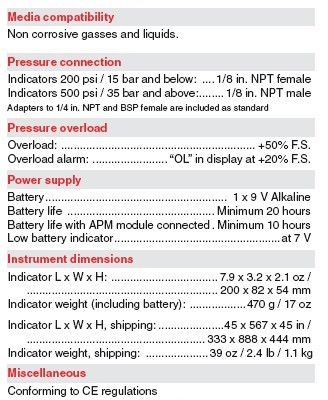

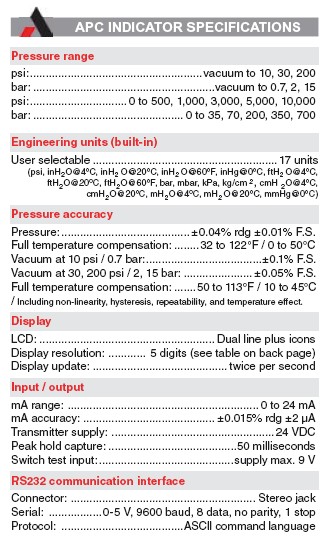

SPECIFICATIONS:
|
Price: $1,455.00
