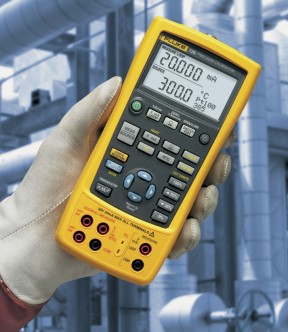

Fluke 726 Process Calibrator
The 726 measures and sources almost all process parameters and can
calibrate almost anything. The 726 will also interpret results without the help
of a calculator and store measurement data for later analysis.
Features:
• More precise measurement and calibration source performance, accuracies of 0.01%.
• Transmitter error% calculation, interpret calibration results without a calculator
• Memory storage for up to 8 calibration results, return stored calibration data from the field for later analysis
• Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing
• HART mode inserts 250 ohm resistor in mA measure and source for compatibility with HART instrumentation
• Integrated pressure switch test allows you to capture the set, reset and deadband of a switch
• Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement.
• New voltage input protection design for improved reliability
• Two separate channels; measure, source and view process signals simultaneously
• Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters
• Source/simulate volts, mA, thermocouples, RTDs, frequency, and pressure to calibrate transmitters
• Measure or *source pressure using any of 29 Fluke 700Pxx Pressure Modules
• Source mA with simultaneous pressure measurement to conduct valve and I/P tests
• Perform fast linearity tests with auto step and auto ramp features
• Power transmitters during test using 24 V loop supply and simultaneous mA measurement
• Store frequently used test setups for later use
• Three-year warranty
*Pressure pump required
|
Function Measure or Source |
Range or Type |
Resolution |
Accuracy |
|
Voltage |
0 to 100 mV 0 to 20 V (source)
0 to 30 V (measure) |
0.01 mV 0.01 V 0.01 V |
0.01 % Rdg + 2 LSD |
|
mA |
0 to 24 |
0.001 mA |
0.01 % Rdg + 2 LSD |
|
mV (TC terminals) |
10.00 mV to +75.00 mV |
.01 mV |
0.01 % of range + 1 LSD |
|
Resistance |
5 Ω to 4000 Ohm |
≤.01 Ω to
0.1 Ohm |
0.015 % |
|
Frequency |
2.0 to 1,000 CPM
1 to 1100 Hz
1.0 to 10.0 kHz
10.0 to 15.0 kHz |
0.1 CPM 1 Hz 0.1 kHz 0.1 kHz |
+/- 0.05 % +/- 0.05 % +/- 0.25 % +/- 0.5 % |
|
Loop Supply |
24 V DC |
N/A |
10 % |
|
Thermocouples |
J, K, T, E, L, N, U |
0.1 ºC, 0.1 ºF |
to 0.2 ºC |
|
Thermocouples |
B, R, S |
1 ºC, 1 ºF |
to 1.2 ºC |
|
RTDs |
Cu10, Ni120 (672) Pt 100, 200, 500, 1000 (385) Pt 100 (3916), Pt 100 (3926) |
0.01 ºC
0.01 ºF |
to 0.15 ºC |
|
Simultaneous Function Capability |
Channel A |
Channel B |
|
24.000 mA DC |
M |
M or S |
|
24.000 mA DC with 24 V loop supply |
M |
|
|
100.00 mV DC |
|
M or S |
|
30.000 V DC measure |
M |
|
|
20.000 V DC measure, 10.000 VDC Source |
|
M or S |
|
15 to 3200 Ohms |
|
M or S |
|
Thermocouple J, K, T, E, R, S, B, M, L, U, N |
|
M or S |
|
RTD Ni120; Pt100 (392); Pt100 (JIS); Pt100, 200, 500, 1000 (385) |
|
M or S |
|
Pressure (requires Fluke 700PXX Modules) |
M |
M used as S |
|
Frequency; Squarewave, 1 CPM to10 kHz; fixed amplitude 5 V pp |
|
M or S |
Includes: TL75 Test Leads, AC72 Test Clips, one pair of stackable test leads, product overview
manual (print) and user’s manual (CDROM) in 14 languages.
