Martel BetaGauge 321A Dual Sensor Pressure Calibrator

View Larger Image

OUR PRICE: $1,895.00

Item Number: BG321

Manufacturer: Beta Calibrators (Martel Electronics)

Manufacturer Part No: BG321

Product Options

* denotes required field

BetaGauge 321 Model Selection*

Beta 321 Dual Range: 15 PSIG/1500 PSIG

Beta 321 Dual Range: 30 PSIG/3000 PSIG

Beta 321 Dual Custom Range Model (Pick Low/High Ranges Below) (+ $100.00)

Custom Pressure Range 1 Selection (Low Side)

Custom Pressure Range 2 Selection (High Side)

BetaGauge 321 Kit Selection*

BetaGauge 321 Calibration Certificate Options*

Quantity:

Email this page to a friend

Martel Betagauge 321A Dual Range Pressure Calibrator

     The Martel Betagauge 321 portable pressure calibrator provides unmatched pressure measurement flexibility over any competitive unit, setting a new standard over the ever popular BetaGauge 320.

    The Martel 321 pressure calibrator provides 0.025% FS accuracy on both internal, isolated and stainless steel pressure sensors. An external pressure module connection supports all BetaPort-P pressure modules for greater measurement capability. A Pt100 RTD input is provided for temperature measurements accurate to 0.1°C (0.2°F). In addition, the temperature calibration device measures a 4-20 mA loop current and up to 30 VDC while an internal 24 Volt Loop Power Supply can power a transmitter. The Martel 321 pressure calibrator supports up to three simultaneous measurements in any combination, including three pressure measurements.

     With simultaneous display of two pressure and an RTD temperature measurement, the temperature pressure calibrator is ideal for gas flow or custody transfer calibrations.

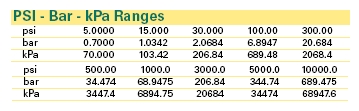

     The Martel 321 pressure calibrator is available in two standard configurations: 15 PSIG/1500 PSIG or 30 PSIG/3000 PSIG ranges, or customized with any two ranges selected from 0.3, 1, 5, 15, 30, 100, 300, 500, 1000, 1500, 3000, 5000, or 10,000 PSIGi. Absolute ranges of 15, 30, 100, 150, 300 PSIA. It is also available in a calibrator Kit, which includes the Calibrator, Pt100 RTD Probe, batteries, manual, factory test report, test leads, and hard-sided carrying case. Also available with single pressure sensor as the Martel BetaGauge 311A.

The Beta 320 series is available in a Kit, which includes the BetaGauge 321 Pressure Calibrator, Pt100 RTD Probe, batteries, manual, factory test report, test leads, and hard-sided carrying case.

Features:

Two isolated, stainless steel, pressure sensors
+/- 0.025% F.S. Accuracy
Temperature-compensation ensures accuracy in field applications
External pressure module connection supports all BETA Port-P pressure modules
Pt100 RTD input for temperature measurement
Accurate to 0.1Deg C (0.2Deg F) for RTD Measurement
Measure 4-20 mA input
Internal 24 V Loop Power Supply can power a transmitter
Measures up to 30 V DC
Large graphic style LCD with backlight
Display can be configured to display up to 3 inputs simultaneously
Ideal for gas flow calibration (custody transfer) applications
Switch test on Pressure 1, Pressure 2, or external modules
Up to five frequently used setups to be stored
Last setup automatically recalled on power-up
% Error and damping functions
Small, rugged compact design operates
Uses (4) standard AA batteries

Add over 25 ranges to the Betagauge 311/321

by using Martel BetaPort-P Pressure Modules

and BPPA-100 adapter accessory
